Boss IV Slant Trailer
Be your own Boss with this trailer. The Boss IV has all the functionalities
you need with the low price to go with it. It
is standard 7' tall, 6'8" wide and 20' in length, has lined and padded
stalls with mats. The divider separator wall of the dressing room is a
tall swinging gate which is shown in the photos. This feature allows
for the entire trailer to be open if needed for hauling most anything. All
horse dividers are totally removable and operate on an easy slam latch
design. You will have plenty of air flow with the smooth skin design and
stock sides on the trailer. We also use barred head dividers for more
air flow and it makes the horses calmer by being able to "see thru".
The Boss IV has a 24"
short wall dressing room and 6' long wall with a 4 tier removable free
standing saddle rack inside. Dressing room has the camper
door with screen. This new Double D trailer
Design comes standard with everything shown in
the pictures down to the wide graphics package and the chrome
wheels. If you are looking a four horse open side trailer with
a dressing room, slant load, this is the trailer for you. With a
weight of 4800 lbs approximately, you can tow with most any 1/2
ton series pick up truck.
This trailer is built with the horses safety in mind all the way around by

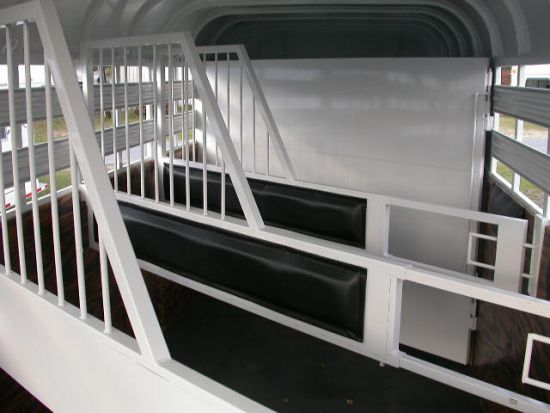

having the kick sides, padded stalls and no obstructions in the way for
loading or unloading the horse. All Double D Trailers are undercoated
for longer protection and feature no rust Galvaneal metal, Galvanized
latches and stainless steel hinges with rubber bumper on the rear.
Features &
Options:
Standard Features:
-
- 1"x
2"x 14 gauge uprights
- 20
gauge rolled top
- 16
gauge sides
- 6'8'" wide
- 7'
tall
- Full nose for more space
- Electric
brakes Both axles
- Butt Chain for rear load horse
- CCA
pressure treated 2x8 pine flooring
- 24"
centers on uprights,
cross members & roof supports
- Galvaneal Teardrop
fenders
- 2 5/16" ball size adjustable coupler
- Heavy duty spring loaded jack
- Dexter
6000# E-Z lube axles
- 16"
radial tires ten ply
- Diamond Aluminum
Tread plate Gravel guard
- D.O.T
lighting
- D.O.T.
tape
|
- Stock Side Trailer with 12" radius Roof
- 4-Tier removable saddle tree in dressing room
- Swinging divider dressing room wall
- 4800 lbs
approximately
- Spare tire and wheel
- 12" Radius sides and roof line
- Solid Rear door with Galvanized latch/stainless hinge
- Lights in horse and
Dressing Room
- Two Barred Horse
stall dividers standard (removable)
- Aluminum Outside Tie
loops for each horse
- Heavy
duty rubber mats in stalls
- Padded
stalls
- Double
D Exterior finish package
- Wide
GRAPHICS
Package/pinstripe
- Smoked
plywood kick lining
- Sealed
seams in Dressing Area, roof,
fenders & uprights
|
Optional Features:
| |
Awning |
|
$800.00 |
| |
7'6" height |
|
$800.00 |
| |
50" width, 7'6" height
Warmblood
Size Stalls |
|
$3,000.00 |
| |
Rubber Wall Liner
(in place of smoked plywood) |
|
$950.00 |
| |
Chrome wheels |
|
STD |
| |
Aluminum Roof Mount
Hay Rack |
|
$950.00 |
| |
|
|
|
Images:
(Click small thumbnail picture for larger photo)

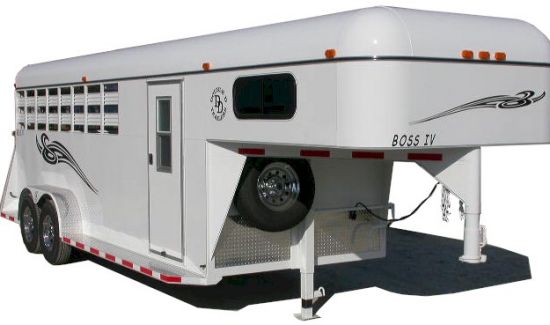

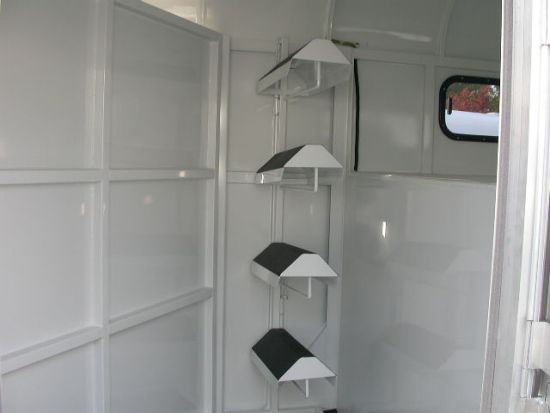

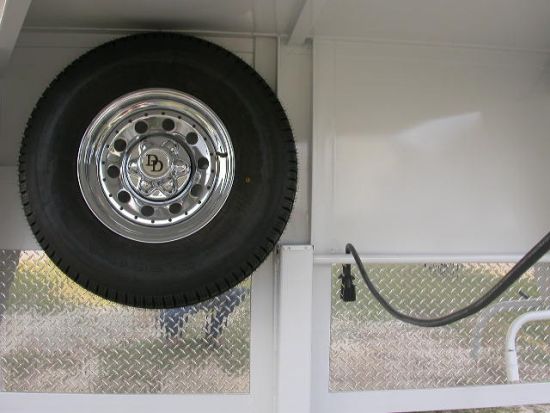

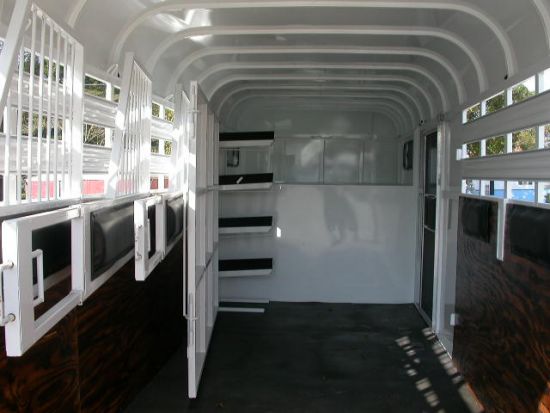

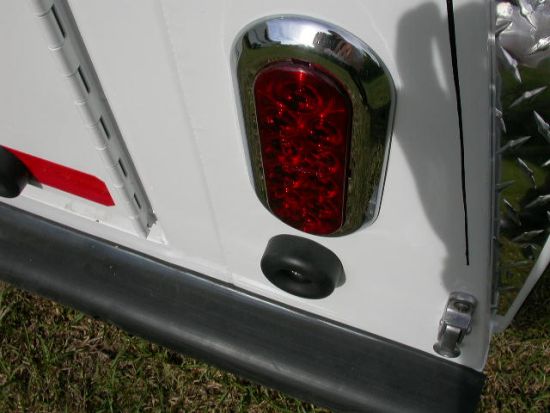

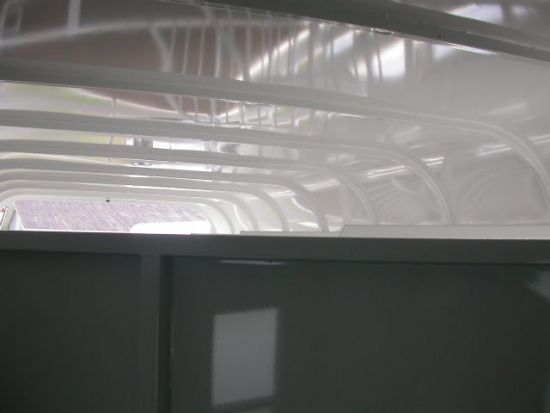

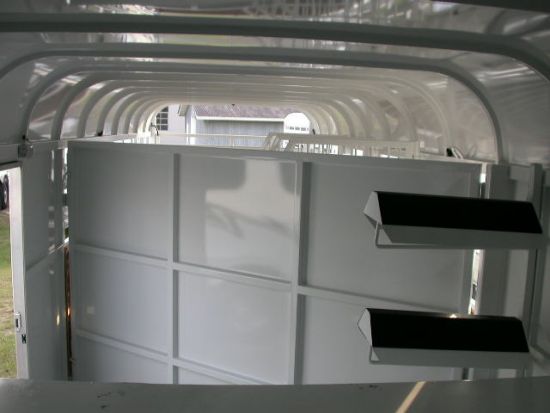

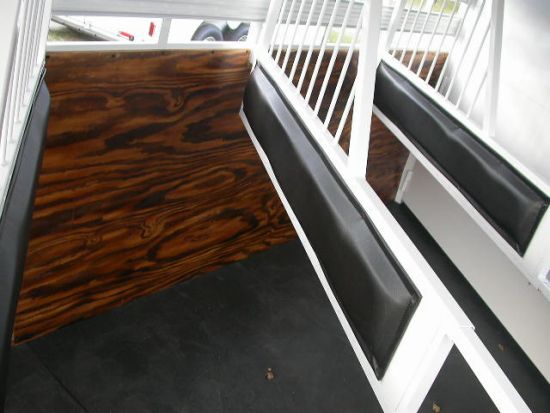

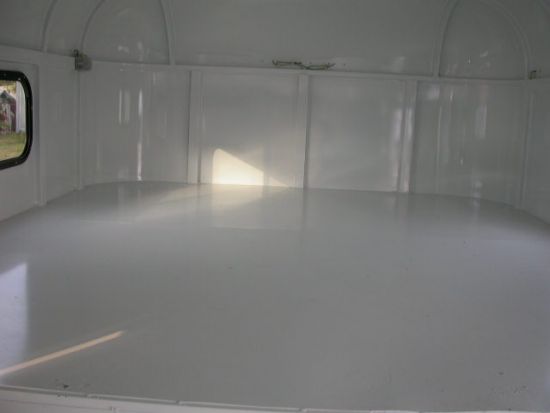

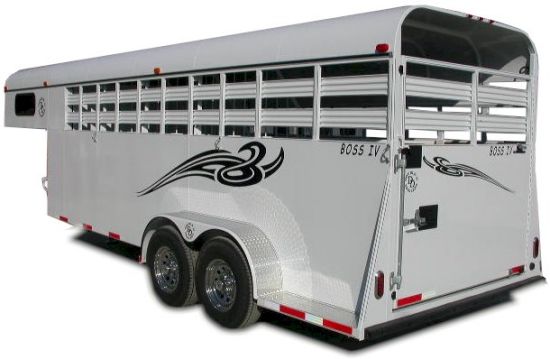

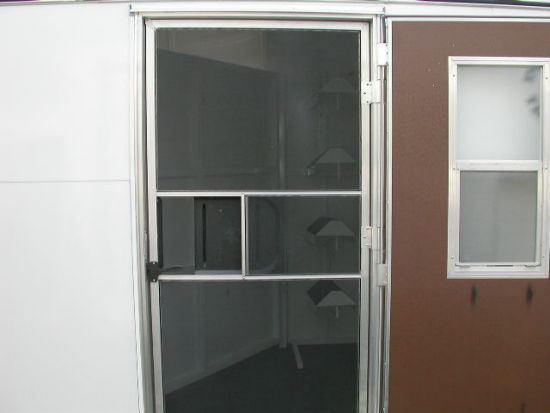

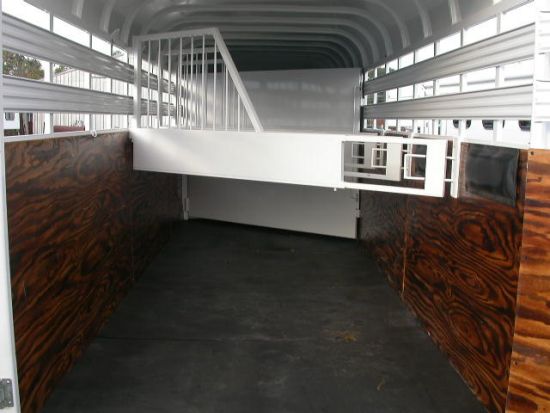

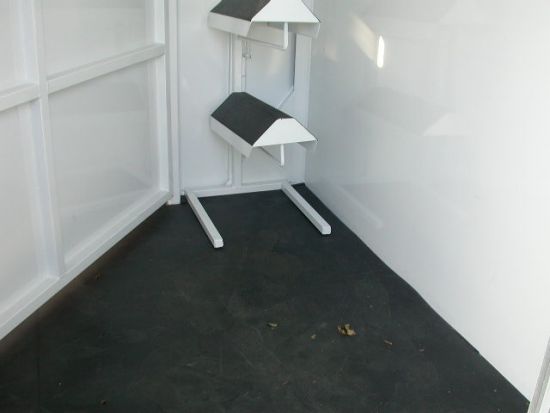

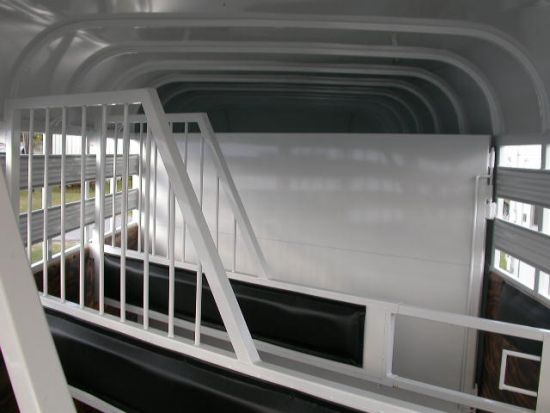

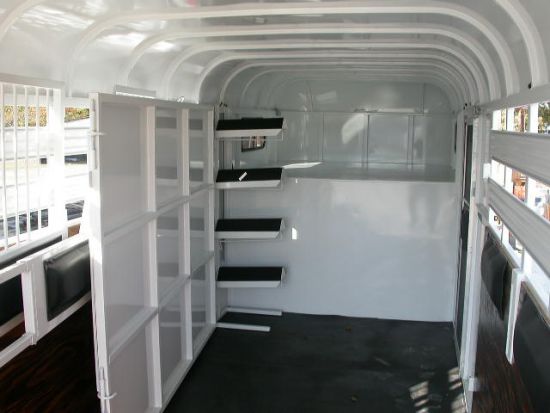

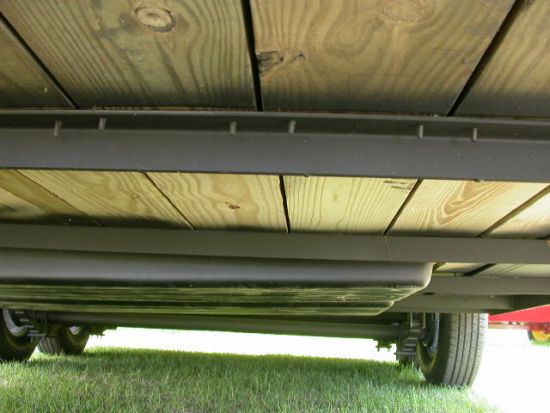

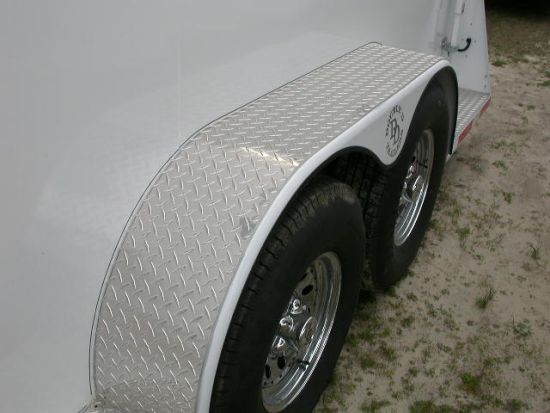

Wide graphics, stock sides, Chrome wheels standard Diamond plate across front and 16" Radial Chrome spare tire standard Removable free standing 4-Tier saddle rack standard Sliding windows in the nose area Sitting in the Nose area looking back, swinging divider wall gate Top area of the swinging divider wall gate Camper door with screen included Smoked plywood lining walls and rubber mats in flooring 2' Short wall x 6' long wall, mats in floor in dressing room Wow! Entire trailer opens up all the way to the front, very versatile for hauling anything. Dividers will lift out and the saddle racks are removable Diamond plate across fenders LED lighting and Rubber bumper standard All Double D Trailers are undercoated for longer protection
