12' Living Quarters, 7' wide and 8' Wide

Exodus 12' long x 7' wide and available 8' wide.

Base price: $36,500


 - Price your new Trailer



- Structural Features
- Living Quarter Features
- Floor Plans (PDF Format)
- Photo Gallery
- Do you have design questions?



-Slide Out Video

IPIX Video Tours:
Kitchen Area
Bedroom Area
Kitchen area 2
Bathroom Area



We certainly aren't trying to confuse you. The original design of the Exodus trailer had every imagineable option you can think of. It had a price of over $60,000. What we found out from listening to you is that you want what you want. In simple terms, you didn't want to be told the "generator was standard and couldn't be deducted". So, better serve you in designing your new living quarter horse trailer, we stripped down the exodus to the same features as the Rawhide and Revelation, but 2' longer with more cabinet space and floor space. You may add as many, or as few options as you desire on this trailer to keep your pricing where you need it to be.

**The Exodus Gooseneck Horse trailer with Living Quarter difference:

  • Z-Frame Technology (learn More)
  • Unique, safe and Functional rear Safe-Tack® (learn more about Safe-Tack)
  • aluminum tubular head dividers standard (more air flow, less stress on your horses)
  • Walk thru door from the dress to the horse area
  • SafeBump Roof® and SafeKick® Wall System  (learn more)
  • Hand built cabinets inside with real home style cabinets and wood working
  • Slide out's available. Watch Video

Structural Features:

This Model is available in extra heights and length to accomodate varying size horses

Gooseneck Horse trailer with living Quarters
Body Color
White is Standard. Other colors available
Vinyl stripe Color and Graphic
Weight (without options)
11,200lbs
Z-Frame Technology
Standard
2"x8" pressure treated pine flooring on 16" crossmembers
Standard
Exterior Skin
22 Gauge Zinc Sheets with Baked on Siliconized Paint
Overall box length
26'
Overall trailer length with gooseneck
33' 6'
Overall trailer box width
81" standard, optional 8' wide
Dress side
12" short wall x 16' long wall
Walk thru door to horse area
Standard
Inside Height
7', optional 7'6"
Stall Length
134" diagonal, 109" divider length
Stall width
40"
Coupler
2 5/16" adjustable height couplerl
EZ Lube durable never adjust brakes 7,000 # capacity per axle
Smooth leaf spring suspension
Brakes
4 wheel
Wheels
Powder coated gray, optional aluminum
Tire Size
235/75R16 (E) Radial

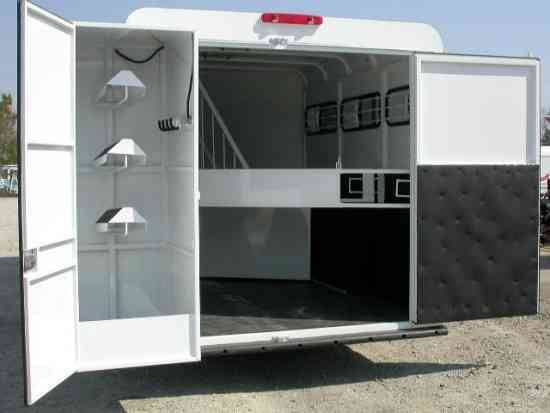

Full Height rear doors with Safe-Tack® Design
Standard
24" Diamond plate Gravel Guard at Nose
Standard
Running board steps down dressing room side
Standard
Saddle racks
3
Safe-Tack® Slant load design
Standard
Bridle Hooks
3
Spring loaded drop leg jack
Standard
Marker Lights on Fender
Standard
LED Turn Signal Lights on Rear
(2) Standard up high
Extra divider on rear stall to prevent horses from backing out when rear doors are opened
Standard
Spare Tire
Standard
All locks keyed the same
Standard
Aluminum Slant dividers with hand made padding and safety slam latches
Standard Removable
24" walk thru Escape door
Standard
Horse area roof vents, one per stall aluminum
Standard
Custom hand made padding on dividers and slant wall
2" Standard
30" dress door
Standard
SafeKick® Wall System

Standard

Heat reflective SafeBump® Roofsystem
Standard
Insulated side walls and roof in horse area for maximum temperature protection and safe, quiet ride
Standard
Floor Mats in horse area
Standard
Interior Tie Rings per stall
1
Exterior Tie Rings per horse
1
Horse Area Roof Vents one per horse
Standard
Lights in horse area on rear remote switch
3
Rechargeable emergency Break-away system
Standard
Windows in Gooseneck - (1) sliding with screens, (1) E-Gress Kickout
20"x51"
Picture window in dressing room on long wall - (1)
20"x51"
Windows in stall area - (3) drop down with bars on head side. Windows and bars fold independent, features mid-latch easy to reach system
24"x30"
Windows on butt side- (2) sliding with screens
20"x51"
7-Pin RV Style Plug
Standard



Warranty

(4) Year on Structure
(2) Year bumper to bumper
(1) Year on non-Double D Manufactured parts

Living Quarter Features:

  • 13,500 BTU A/C Coleman Mach
  • 12' short wall x 16' long wall
  • 52 gallons water storage
  • (2) 20LB propane cylinders
  • 2" foam insulation thru out interior
  • Available standard oak Cabinet finish or upgrade to European Beech
  • Hand made moldings and hand made cabinets
  • Soft felt ceiling
  • (optional) 6 Cu. Refrigerator with Freezer 110V or Propane w/auto switchover. 3 cu is standard
  • 2 Burner cook-top
  • (Optional) Home style Oven for cooking
  • Large kitchen double sink for dishes
  • Long counter space for cooking
  • Excellent cabinet space thru out
  • (Optional) 4" foam covered mattress Queen
  • (optional) Folding step ladder to bedroom
  • Very nice lighting in the Bed area
  • (optional)Privacy door in the bed portion
  • Pleated day and night combo shades
  • 19' Roll Out awning
  • 6 Gallon propane hot water heater direct ignition
  • Front wardrobe
  • Fold out sleeper sofa, your choice of color,
  • (optional) removable pedestal table in front of it
  • Flat Screen TV with DVD player
  • CD player/radio with inside/outside speakers (it kicks)
  • 30' 30 Amp Power cord
  • 40 Amp Power converter
  • (optional) 3600 Watt On-Board RV style Generator features
    remote start switch inside interior, easy quite
    operation, located underneath rear tack-Around
  • RV Style 1.0 Cu. Microwave
  • Front wardrobe, Closet in Kitchen, Closet in Bathroom
  • (optional) Real Hard wood sliding pocket door to bathroom, fabric folding door standard
  • Walk thru door to horse area
  • China Toilet with foot pedal flush
  • Bathroom has Glass shower doors
    on the shower and is very large
  • Nice storage in the bathroom
  • Sink in the bathroom
  • Mirrors in the bathroom
  • Tank Monitors on Holding tanks including
    battery power/fresh water/black/gray tanks
  • 20 gallon black waste water tank
  • Closet in the bathroom
  • Molding Thru Out



Base Price: $36,500
Optional Features
Price
Living Quarter Comforts and Conveniences
Ducted roof air in place of standard air NOTE: this option gently blows air thru your living quarters and they system cuts off when the desired temp is reached.  Recommended only with the 7'6" height option.  The standard unit the fan runs constant and doesn't cut off. $
400
Furnace 16,500 BTU on thermostat NOTE: your trailer comes standard with an air conditioner and heat strip. The heat strip requires power so if you do primitive caming in cold weather (no power), the furnace is a great option $
600
Screen door on dress door: All doors now are built at the factory and are very sturdy.  Use this feature to add a retractable screen door to your dress door. Use the screen to keep bugs out when your door Is open $
250
14" rollup Vent in Living Quarters with 12V fan (works well in bathroom area) $
225
Fantastic fan Model 6600r model over bed area, thermostat controled with rain sensor. (NOTE: use this feature to sleep at night without running your air conditioner.  These fans pull a lot of air, variable speed, will pull air or blow air either direction and has a rain sensor) $
550
Raised panel cabinet doors in place of standard cabinet door (NOTE: your new Revelation comes standard with what is referred to as a "panel" cabinet door. Meaning the wood face is flat. Choose this option to have a "raised" panel door where the wood face is built raised and scultped around the edges) $
700
European Birch wood in place of Oak $
300
Dark Stain other than Natural clear finish $
800
Mattress 4" foam covered, 60"x80" $
250
Soft wall feature (NOTE: with this feature, your living quarters will have the effect of a "soft" feel to the touch. The advantage, you may choose a vinyl/synthetic leather material to cover all of your walls. It really gives the interior a "richer" feel versus the standard hard wall. It's also easy to clean, looks fancy if that's your tastes) $
900
Folding custom hand built wood ladder to bed area (NOTE: this feature tucks neatly against the wall, and when not in use you may easily remove and lay up on the bed to be totally out of the way) $
350
Removable pedestal table in front of Sleeper sofa $
350
Taller refrigerator (NOTE: change out the standard 3 cubic refrigerator to a 6 cubic. Requires eliminating window at appliance Bar, switch from double sink down to single sink. OR, you may eliminate the bathroom sink  and install taller refrigerator on the sofa side. $
800
Tray Ceiling (NOTE: Use this feature to add a tray/vaulted style ceiling over your bed area with mood lighting, available only on 7'6" height trailers with ducted A/C option) $
450
Slide out on sofa or dinette (NOTE: use this to slide out your sofa or dinette to create more space in the living quarters.  This does slightly decrease the size of your sofa/dinette area slighly by 4" on either end for additional bracing needed, and your overhead cabinets are a little smaller, Need 7'6" Height option for this feature. This feature works well on a standard with trailer when you need more floor space and do not want to pull around a really wide trailer) $
5000

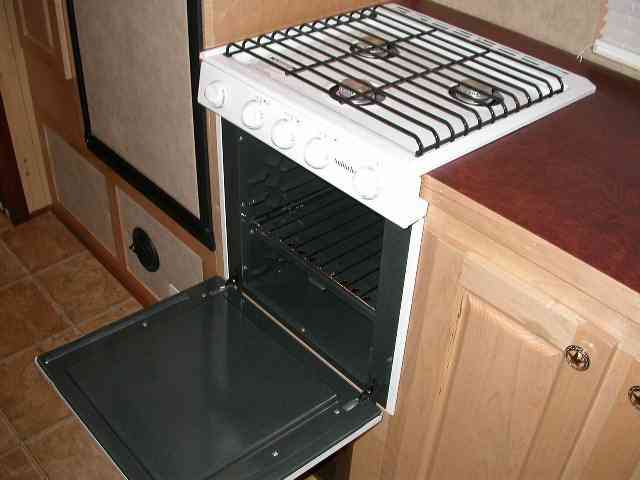

Replace 2 burner cook top with home style oven and 3 burner cook top $
500
Sliding pocket door in place of swinging door. NOTE: sliding door takes up less space and slides neatly out of sight when not in use $
250
Horse area convenience options
Increase to a 4H by adding one stall (NOTE: other options may have an upcharge, like Rumber for example) $
2000
7'6" Height option only (NOTE: works well for taller horses) $
1300
EX 7'6" Height and 8' width (Note: You may increase the overall width of the trailer from 81" to 96", and the height from 7' to 7'6"  This feature not only will accommodate larger breed horses, but creates a tremendous amount of additional space in the living quarters. Your cabinets will be taller, you have more head room over the bed area, more sleeping area, plus the total feel and walk around space increases substantially. You will need to add the hydraulic jack option with this feature. Adds approximately 1,000 lbs to overall weight ) $
3950
Add 1' to one horse stall for Draft size or Warm blood horses (specify which stall and # of stalls) $
600
Change flooring to Rumber in place of 2"x8" pressure treated pine (rumber has a life time warranty, doesn't require a rubber mat and is easy to clean, prevents slippage) $
985
Rear door window for more air flow (20"x24" size) $
150
Fans for hauling in the summer time (priced each) $
85
Remote switch for interior horse fans $
60
Ramp door in addition to full height rear doors (NOTE: your new slant load trailer is standard with the rear tack around and is a step up. Use this feature to add a spring assist folding ramp in addition to your tack around) $
1050
Extra interior tie ring (one is standard per horse, add a second for tying hay bags) NOTE: Lay flat tie rings are standard to prevent injury to a horses eye, specify quantity) $
30
Extra exterior tie ring (3 are standard) specify location of additional rings $
40
Feed bag works great for feeding while trailering (priced per stall) $
65
Front stall escape door (NOTE: Walk thru door is standard from the horse area to the dressing room. Us this option if you want a door on the front stall, typically used in conjuction with a stud gate for storage (other than the horse) $
550
Mangers per stall (specify quantity), typically not installed on the front horse stall $
750
Front Stall Storage Partition: you may prefer to use the front stall for storage. This feature keeps your cargo in the front stall $
450
Popular Add on's

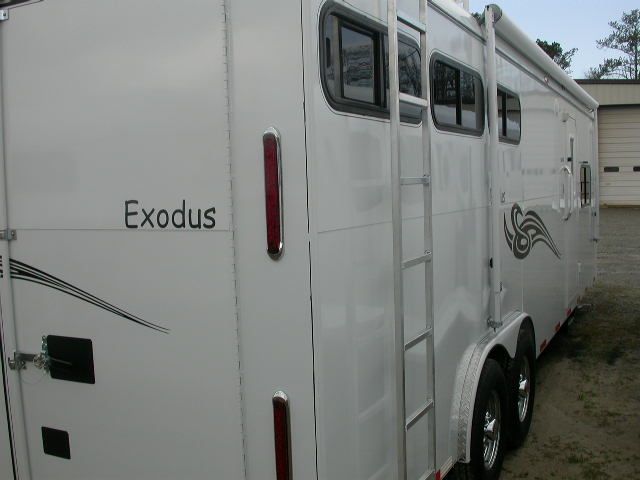

Roof mount hay rack with side ladder $
1100
On board generator with remote start NOTE: this includes the roof mount hay rack and a 5 gallon gas tank.  If you add the manger option, we can install a 15 gallon stainless tank with outside fill gauge, inside of the manger if you add a manger option.  Run time on 15 gallons approximately 35 hours continous $
5950
Custom 15 gallon stainless fuel tank located inside manger $
300
Outside 55 Watt rear halogen loading spot light for night time use on remote switch $
120
Set of (3) are standard in your rear tack around. Add an extra set of (3) Bridle hangers in rear tack or dressing room (specify location) $
55
Extra saddle rack (3) are standard $
85
Slide out saddle racks (NOTE: Saddle Boss Saddle racks are in your new trailer, use this feature to be able to slide your saddle rack towards you when removing your saddles. Aids in getting your saddles in and out of the trailer and is quite convenient) (specify quantity) $
85
Blanket bar inside dressing room or on rear saddle tree (specify which) $
85
Hydraulic Jack (recommended extra battery) $
1500
Extra battery and enclosed aluminum battery box NOTE: a large portion of this cost is from the aluminum enclosed battery box. This works well with a trailer that has a hydraulic jack, and for extended stays without power, more than a couple of days. Otherwise, the single battery performs well $
350
Change awning to two step (NOTE: Worth the extra money, simply flip the lever and pull the release to set up your awning) $
300
Color other than white $
400

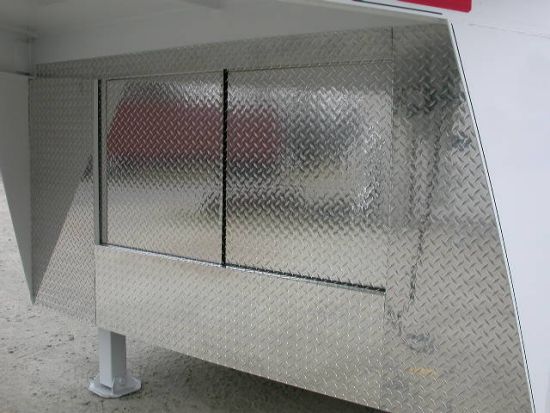

Stainless nose sheet on "V" portion of trailer (NOTE: this option has a "mirror" style sheet on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer) $
450
Aluminum wheels in place of standard gray wheels (NOTE: use this feature to upgrade to aluminum wheels.  They are worth the extra cost in adding longevity to your trailer. These wheels will look good 10 years from now) Spare remains gray and is covered with a tire cover, add $150 to change the spare as well $
600
Enclose front of trailer and add a 2nd hydraulic jack. NOTE: Hydraulic jack option required in conjunction with this option and dual batteries $
2,800

Sub Total *
$
  Your State estimated Sales Tax (enter your tax rate, %) $
  Your State estimated License Fees $
  Document Fees $
  Service Provider Fee (if financing) $
  Bank Closing Cost (if financing) $
  Delivery (specify miles from factory, free within 1000 miles)
Click here to find your distance from the factory
$

Total with Fees *
$

  If you are financing and/or have a trade in, please complete the following:
  Down Payment amount
NOTE: most banks like to see a minimum down payment of 10% of the purchase price, without sales tax
$
  Trade in Value of your current trailer $
  Payoff on your trade in trailer (how much you owe at your bank, if any) $
  Equity in Trade In $
  Total Down Payment with Trade In $

Financing Amount *
$
  Interest Rate (enter the Interest Rate from your Bank, %)   %
  Term of Loan in Months
For loans of $10K or more, most banks will go up to 120 months.  For less than $10K, the maximum term is 84 months.


Estimated Monthly Payments *
$
  * Options calculations are for estimation only. Firm quotes available on request.


Would you like more information?


Would you like more information?




Images:
(Click small thumbnail picture for larger photo, many things shown are optional. Check the options list to verify)

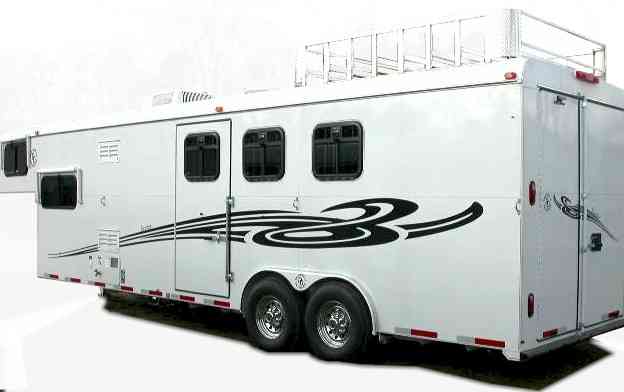

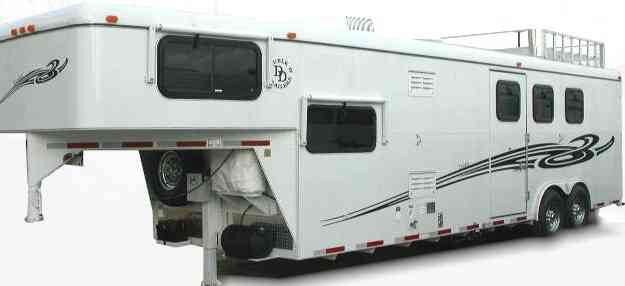

26' 12' Short wall Living quarters



Optional hay rack

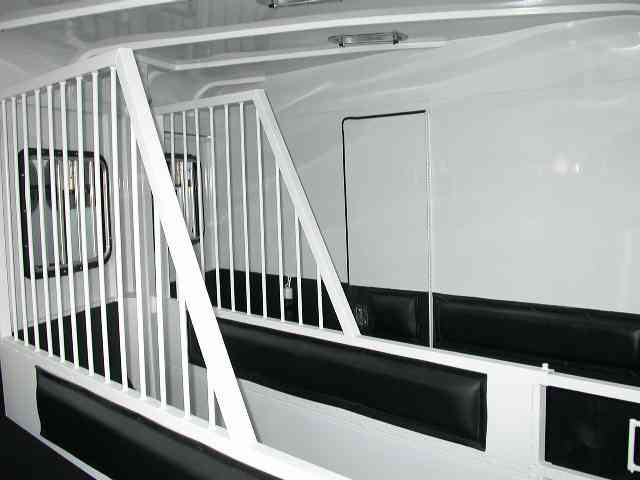

Padded stalls, removable dividers




Escape door on the front stall

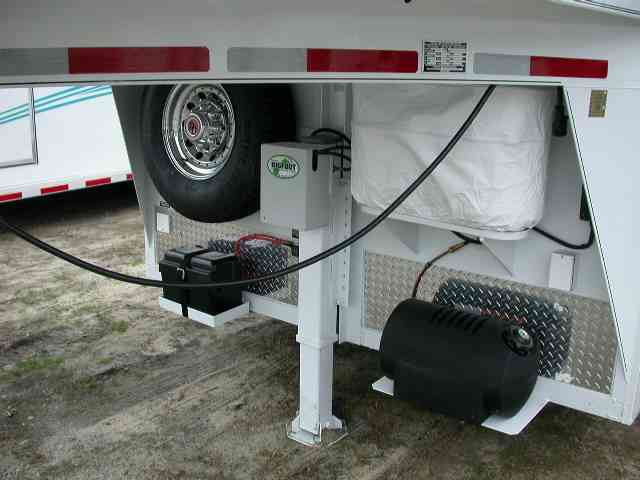

Shown with optional Gas tank for generator, Hydraulic/electric jack and dual propane tanks, we offer enclosed front and hidden gas tank

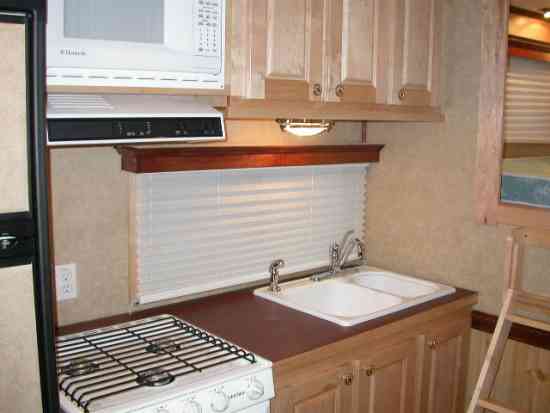

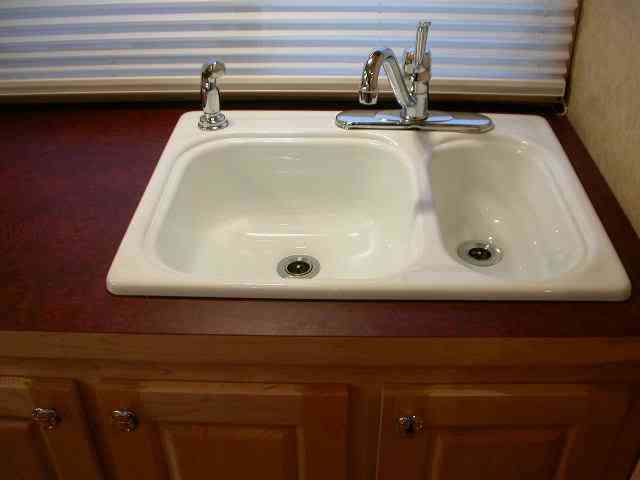

Very large Kitchen style sink, your choice white/black/stainless

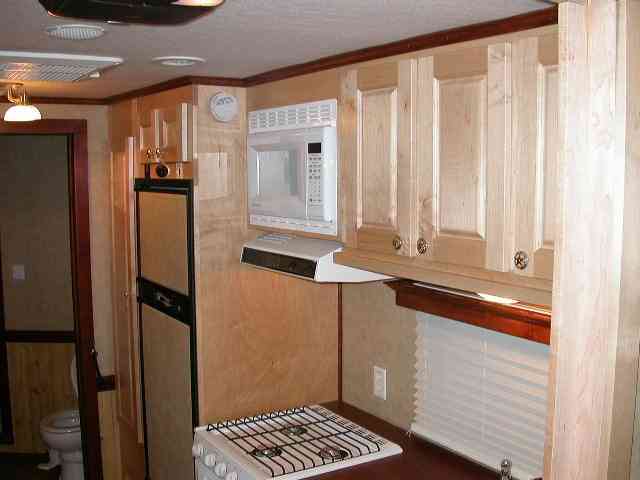

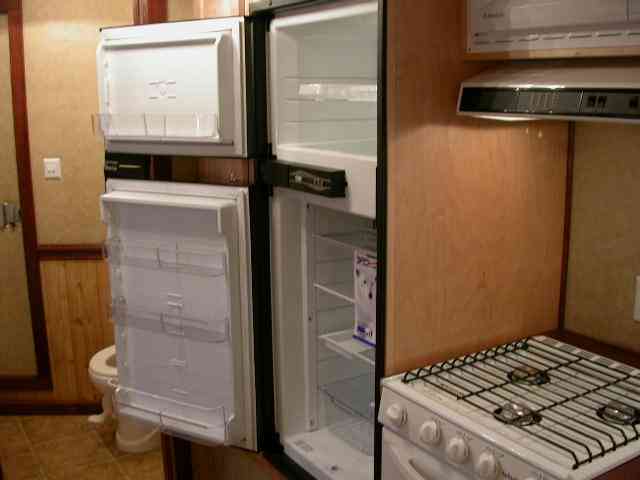

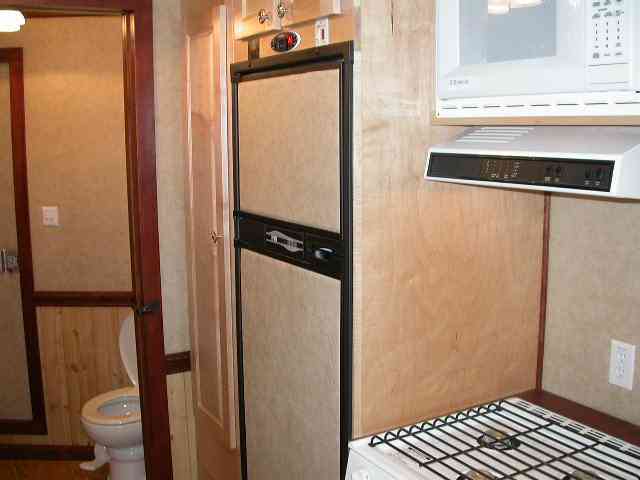

6 Cu. Refrig with freezer, features auto switchover




Optional soft Walls in place of standard paneled wall

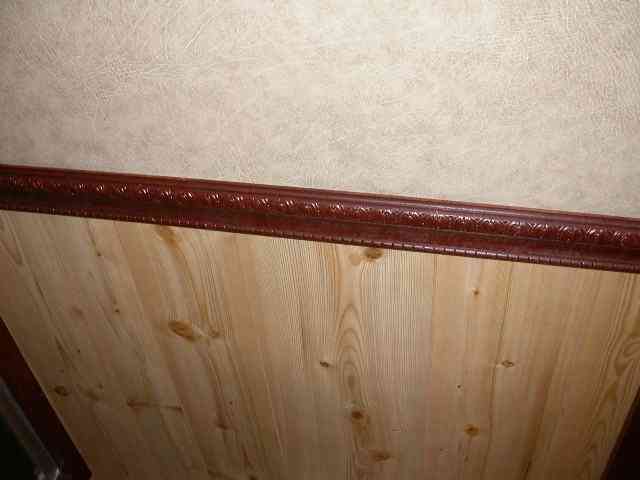

Molding is very nice

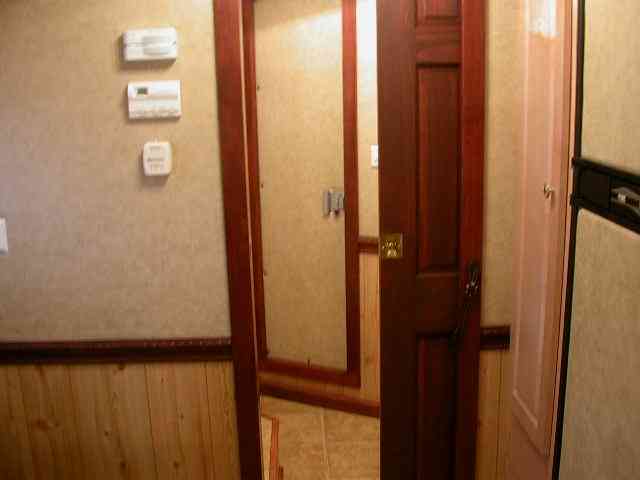

Sliding Pocket door to bathroom, real hard wood door



Nothing cheap about this trailer

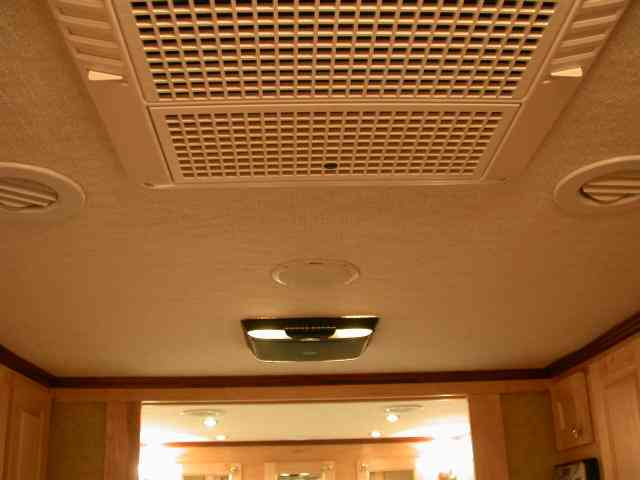

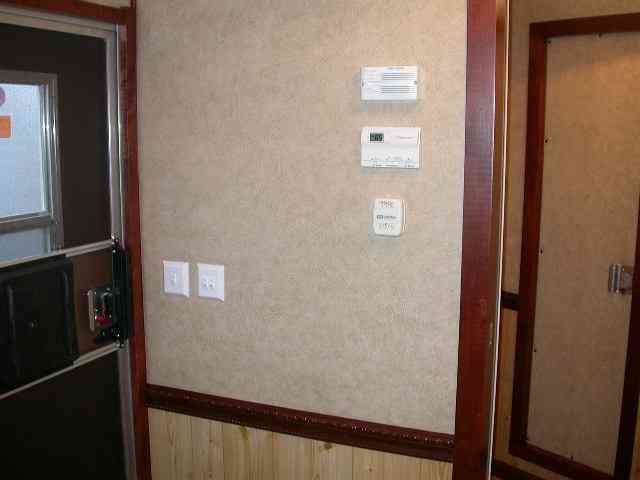

Ducted Roof A/C thermostat control

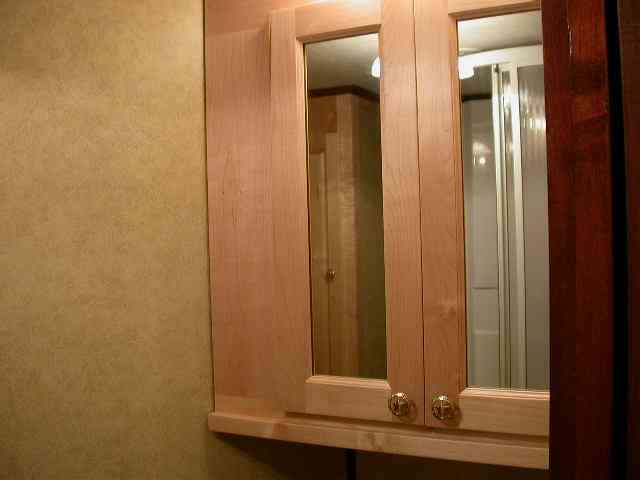

Cabinet in bathroom



Bed area front wardrobe



Ample space in the bathroom

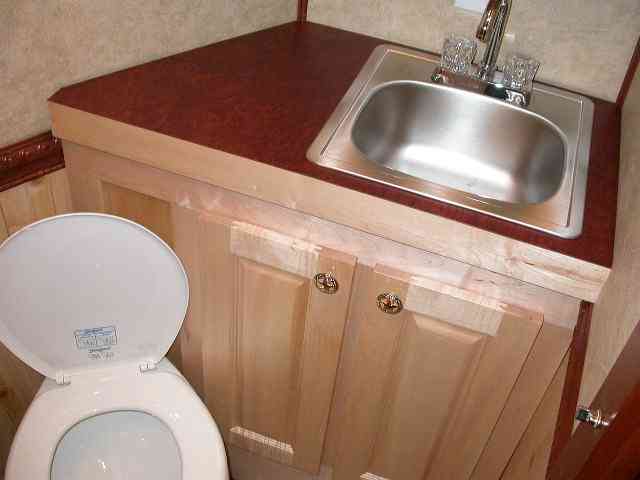

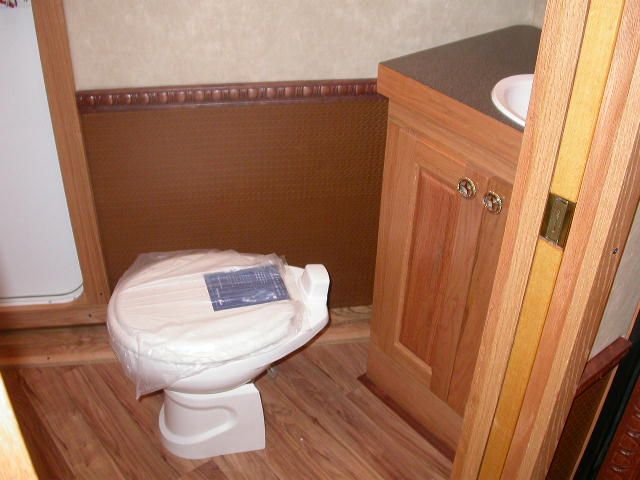

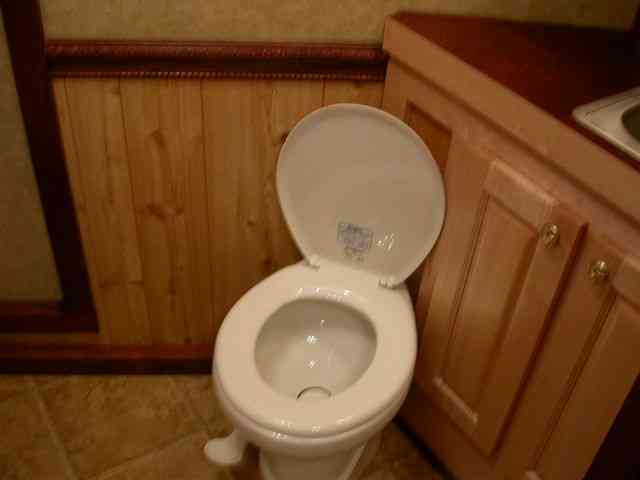

Real China Toilet, good walking space around it

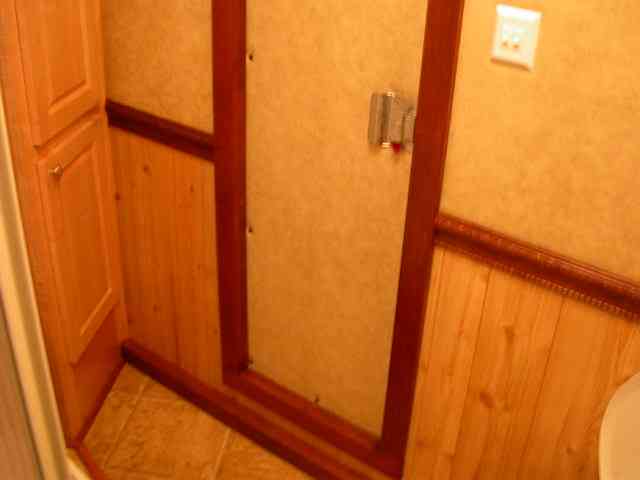

Walk thru door to the horse area

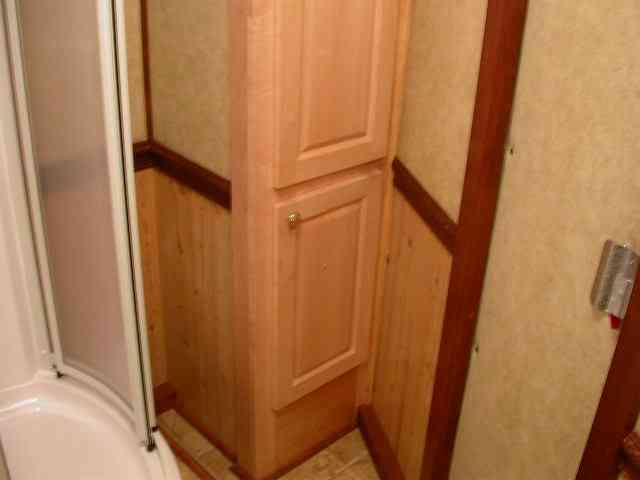

Full height closet in the bathroom

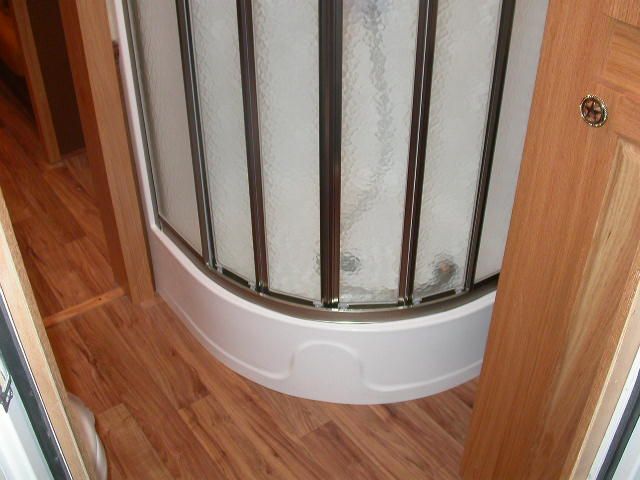

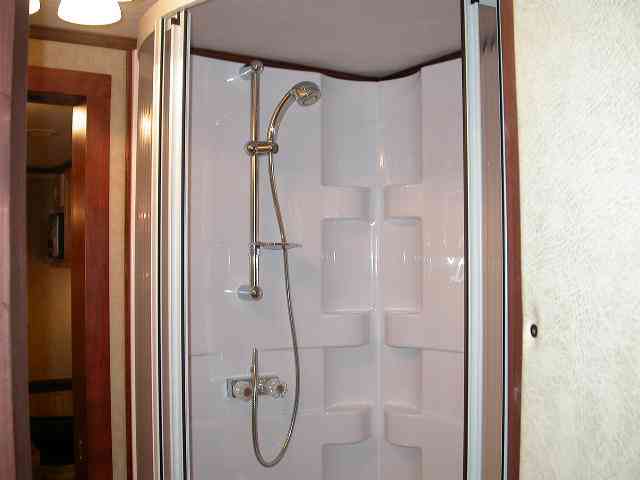

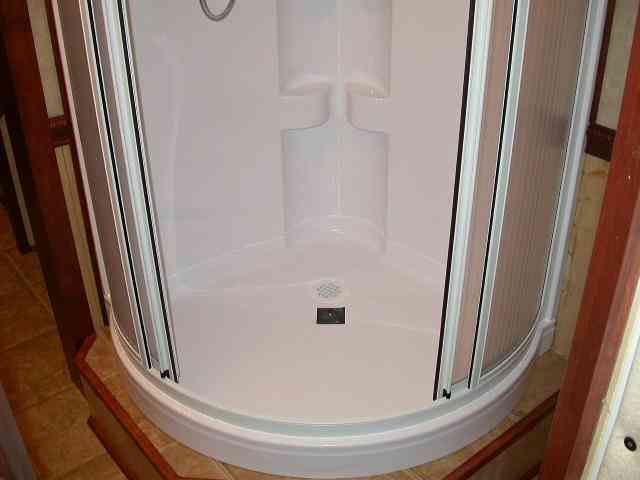

Wrap around glass shower doors, roomy shower stall




Good quality fixtures in all places

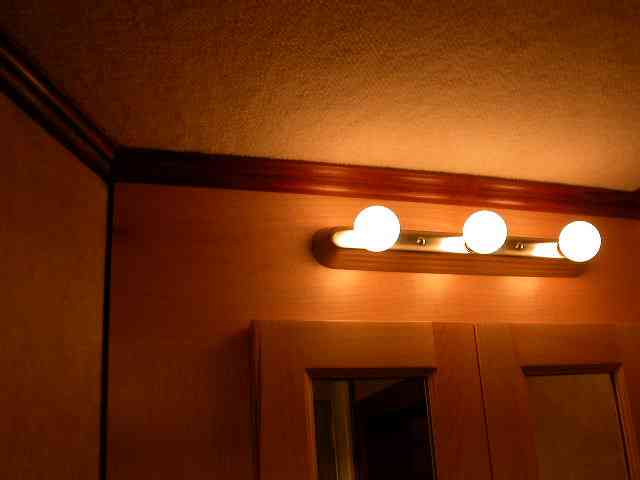

fancy lighting in the bathroom

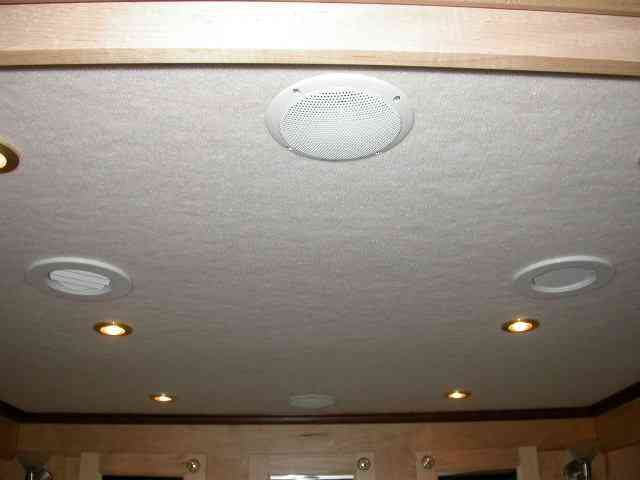

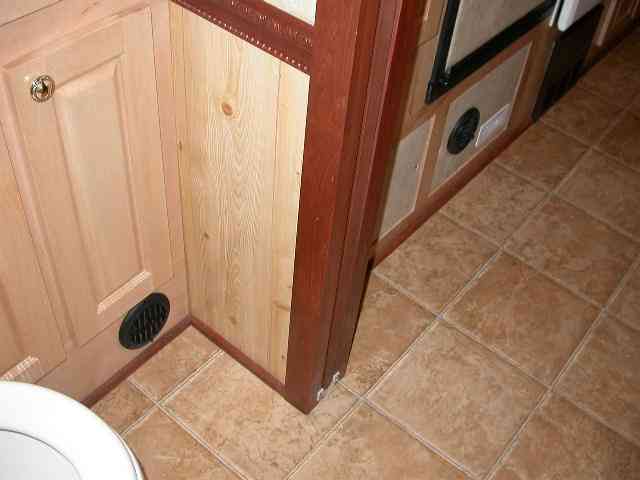

Ducted furnace vents for heat

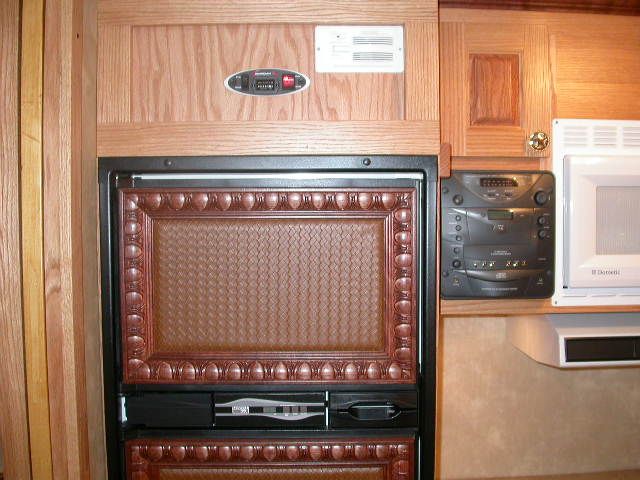

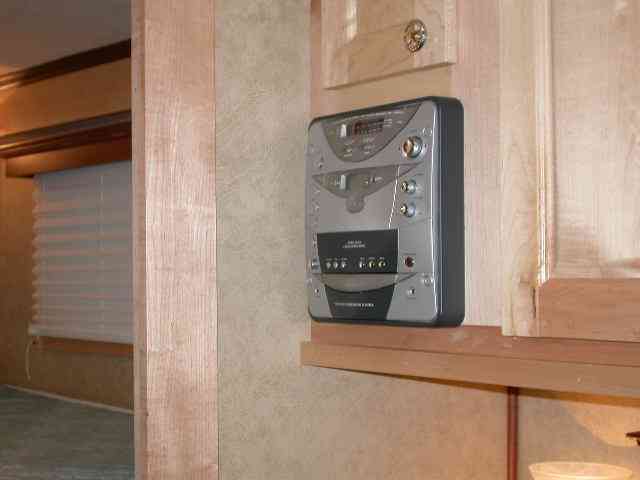

Radio/CD player with inside outside speakers

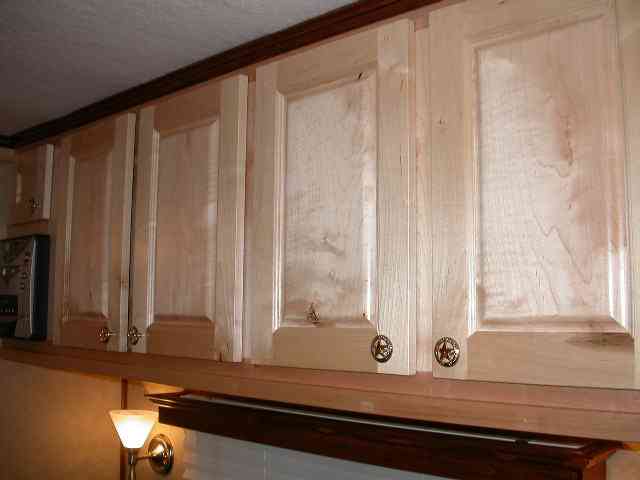

Maple or Oak cabinets are standard

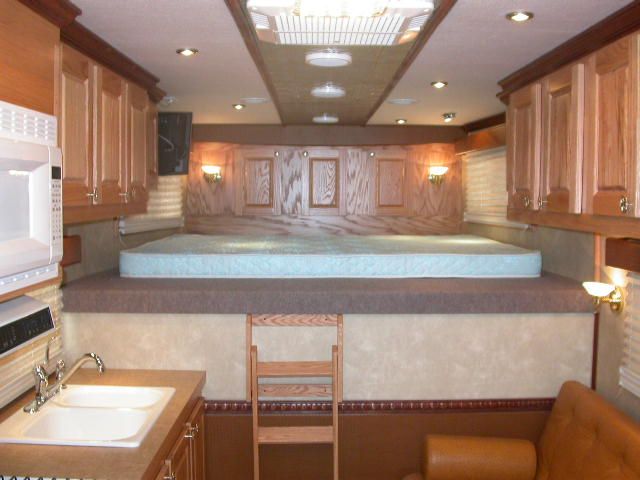

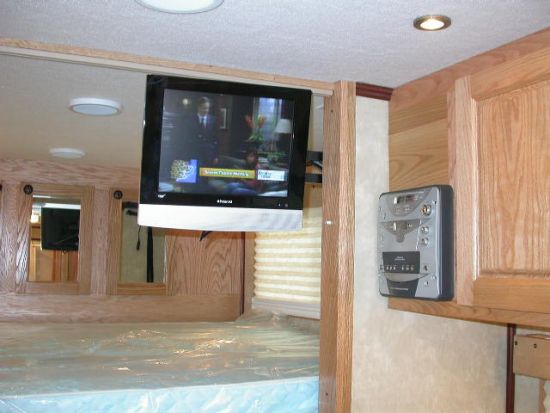

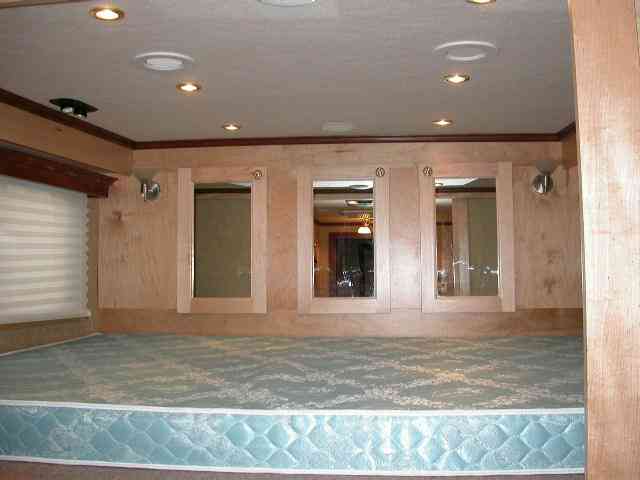

Bed area is well lit



Generator switch with hour meter, also, location to battery disconnect

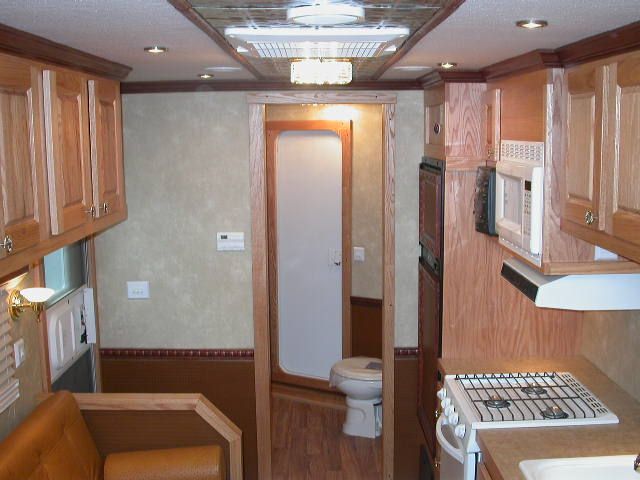

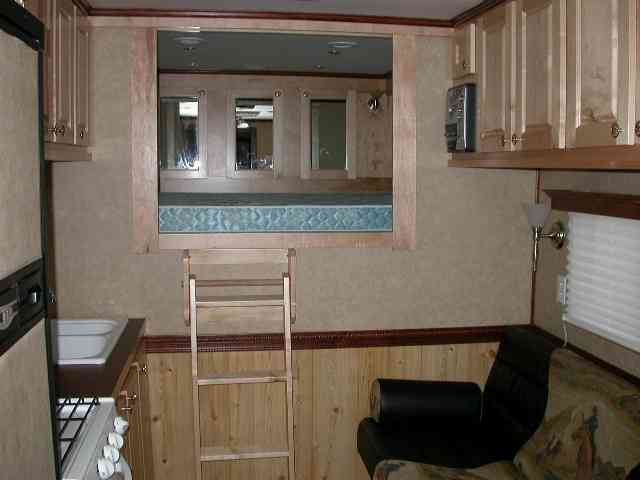

Standing in rear looking forward

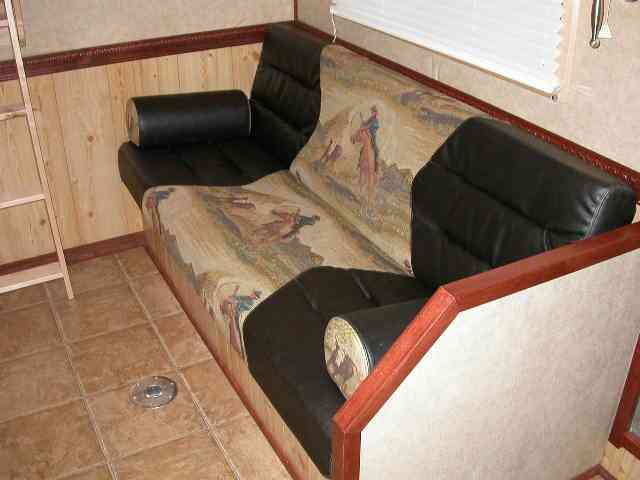

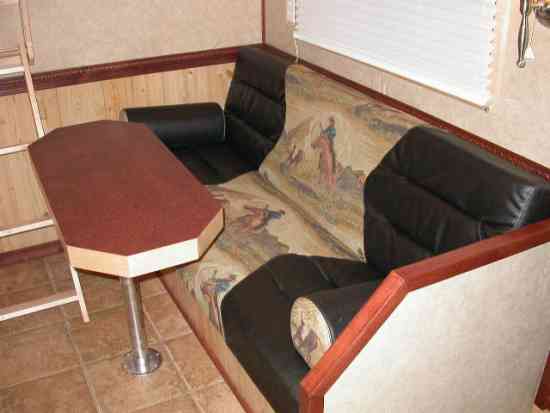

Fold Out sleeper Sofa, your choice of color, 50 gallon water storage underneath



optional Table stores underneath the sofa when not in use

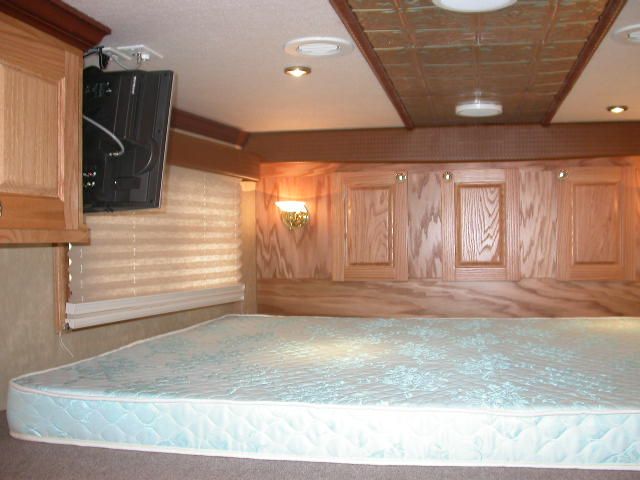

optional 4" foam covered mattress

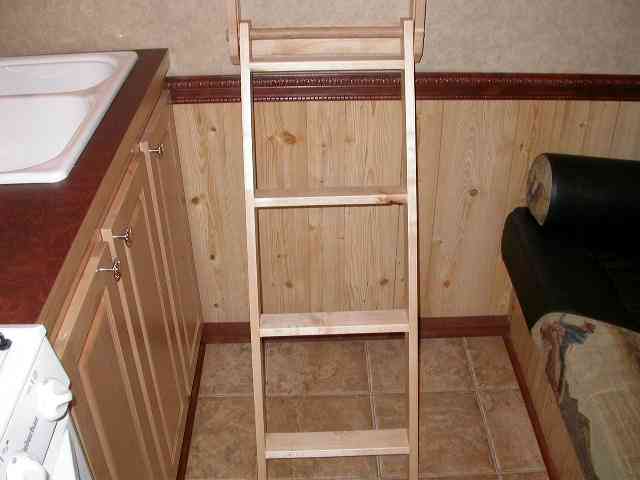

Fold away step ladder, slides up against the wall out of the way when not in use





optional Real Oven with 3-burner cook top (baked cookies or brownies are always good)



Standard New Ceiling material works great, no seams





Ample counter space





Shown in optional closed in front with dual hydraulic jacks




optional side mangers rear two stalls



Exclusive Safe-Tack Design



Flat Screen with DVD player





Back to Trailer Models

© 2009-2010. Double D Trailers
All Rights Reserved
