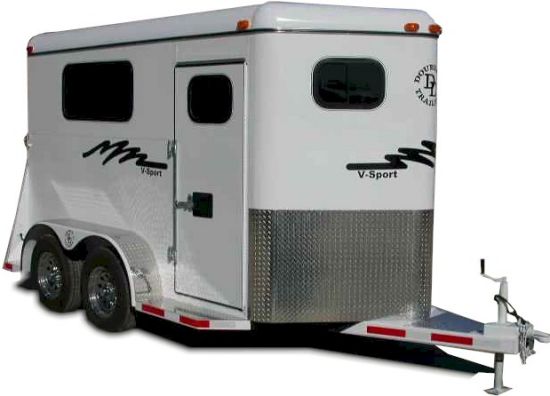

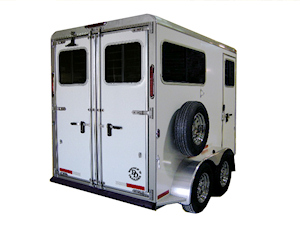

V-Sport Trailer

Base price:
$10,600
 - Customize your new V-Sport



- Features & Options
- Floor plan (PDF Format)
- Photo Gallery
- Request Additional Information Form

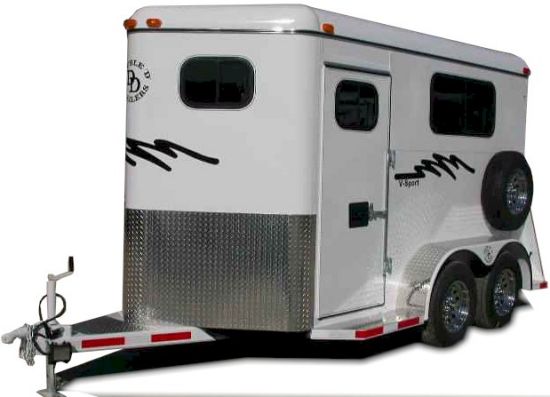

2 Horse Bumper Pull trailers may be set up in a variety of styles and configurations. The V-Sport offers a wide array of options for multiple applications. Whether you are hauling your horse to the vet with a mid size SUV, or driving for several hours for a week long show, the V-Sport is extremely versatile. Weighing at 2700 lbs approximately, you can tow with most any vehicle. This 2H bumper pull horse trailer is designed with you and your horse in mind. Features like:

**Lockable rear and lockable side entry doors (all keyed the same) gives you the added security of being able to lock horse doors, as well as secure other cargo inside.

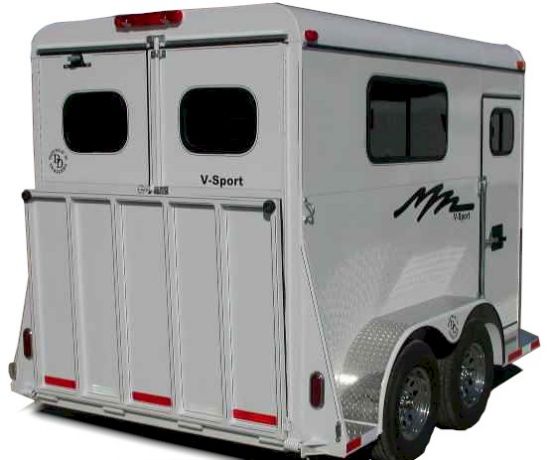

**Your choice of door rear door configureation: full height rear doors step up, ramp with top dutch doors, or full height rear doors with outside ramp. The later is the most popular set up which offers greater protection for your horses in case of a rear end collision. It also offers greater protection for you while loading since you can have a door in between you and the horse to prevent an injury to yourself from a horse kick.

**2 Horse Bumper Pull Straight Load difference in the V-sport Model:

  • Z-Frame Technology (learn more)
  • aluminum tubular head dividers standard (more air flow, less stress on your horses)
  • Full nose or V-Nose in the front walk in tack room
  • SafeBump and SafeKick® Wall System (learn more)

Features & Options:

Standard Features:

This Model is available in extra heights and length to accomodate varying size horses
2 Horse Bumper pull straight load no Dress
Body Color
White is Standard. Other colors available
Vinyl stripe Color and Graphic
Weight (without options)
2700 lbs
Z-Frame Technology
Standard
Exterior Skin
22 Gauge Zinc Sheets with Baked on Siliconized Paint
Overall box length
12'
overall trailer length
14'

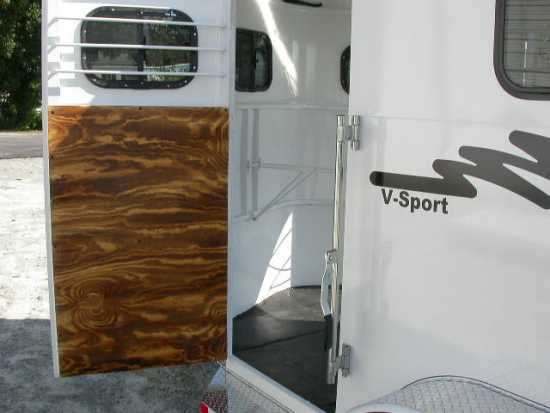

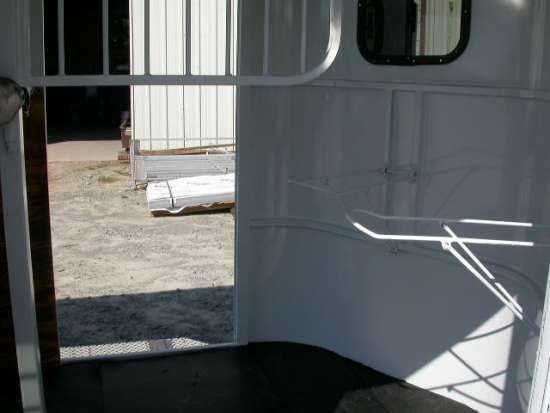

Walk thru door to horse area
Standard
Inside Height
7', optional 7'6"
Stall Length
7'
Head Area
5'
Coupler
2" Ball
EZ Lube durable never adjust brakes
Smooth leaf spring suspension
Brakes
4 wheel
Wheels
Powder coated gray, optional aluminum
Tire Size
225/75R15 (D) Radial

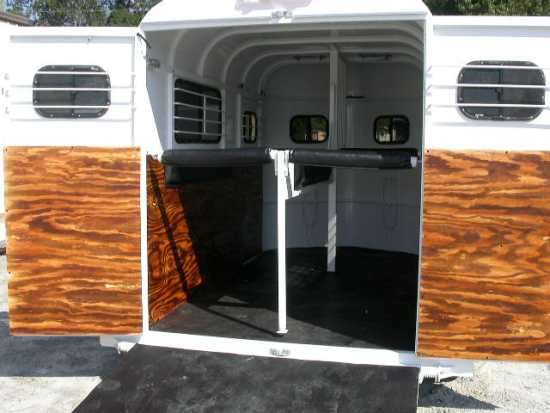

Full Height rear doors with windows, step up
Standard
24" Diamond plate Gravel Guard at Nose
Standard

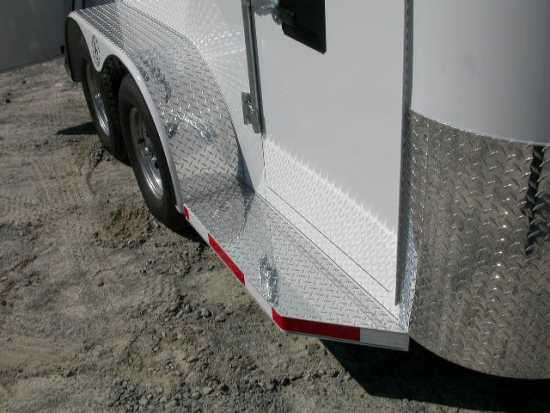

Running board steps down both sides
Standard
Mat in horse area
Standard

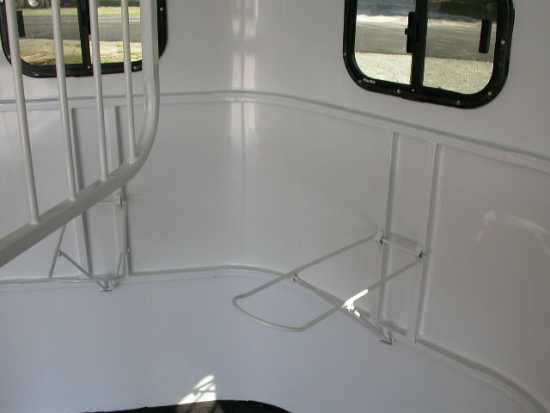

Saddle racks
Optional
Bridle Hooks
Optional
Side Wind Jack
Standard
Marker Lights on Fender
Standard
LED Turn Signal Lights on Rear
(2) Standard up high
One Piece butt and breast bar pins with safety holder
Standard
Spare Tire
Standard

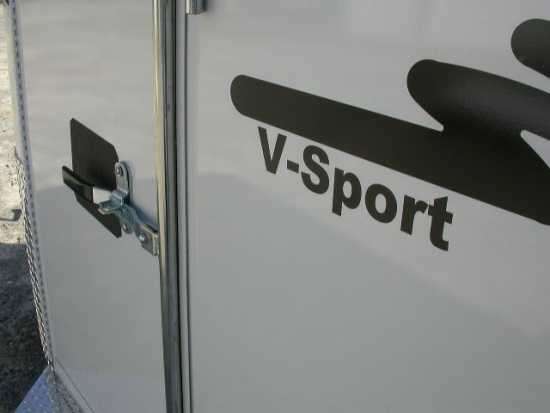

All locks keyed the same
Standard

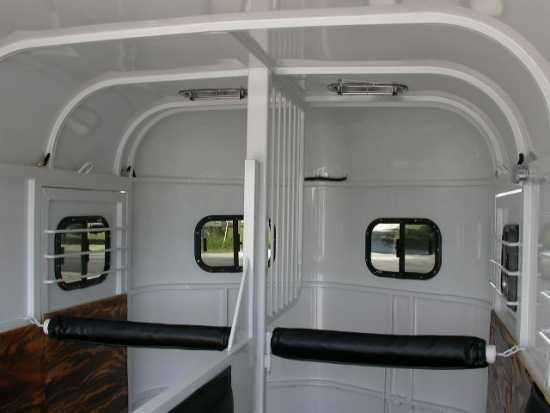

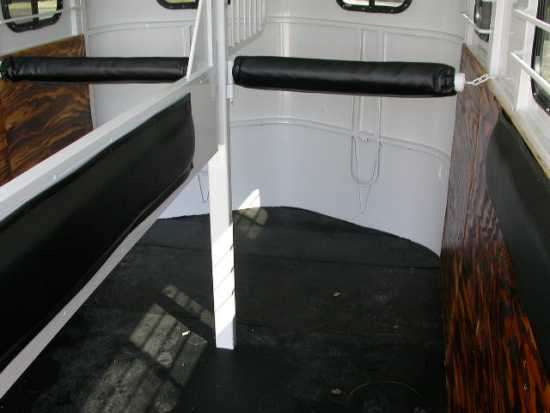

Aluminum center divider with hand made padding
Standard Removable

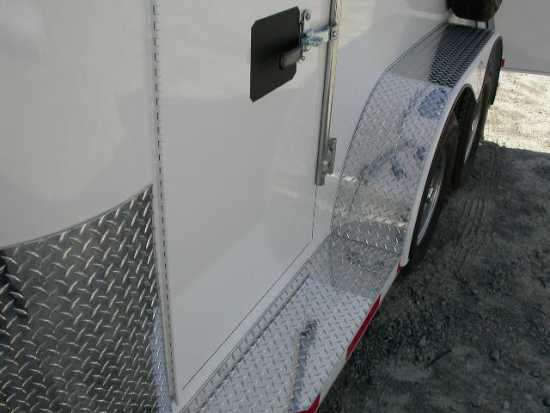

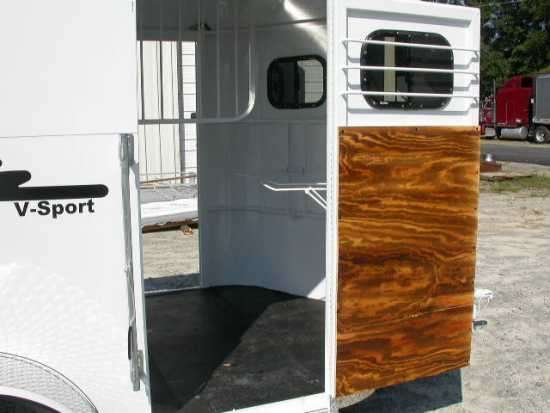

30" side escape doors for access to either horse
Standard

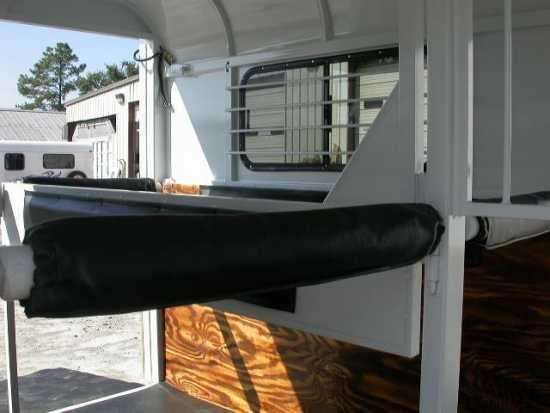

Custom hand made padding on dividers and side walls
Standard

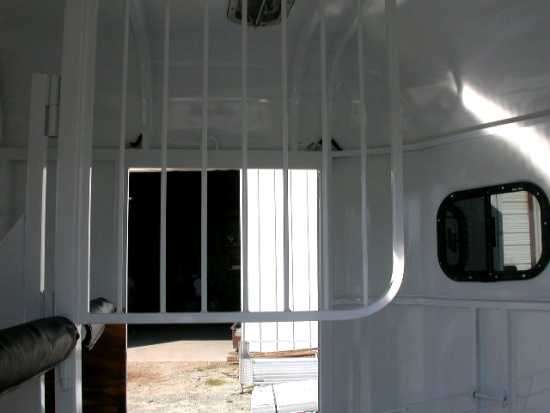

Removable Aluminum Tubular barred head divider on slant divider
Standard
SafeKick® Wall System

Standard
Heat reflective SafeBump® Roofsystem
Standard
Insulated side walls in bottom of horse area
Standard
Interior Tie Rings per stall
1
Exterior Tie Rings per horse
1
Horse Area Roof Vents one per horse
Standard
Lights in horse area
2
Rechargeable emergency Break-away system
Standard
Windows in nose - (2) sliding with screens
20"x24"

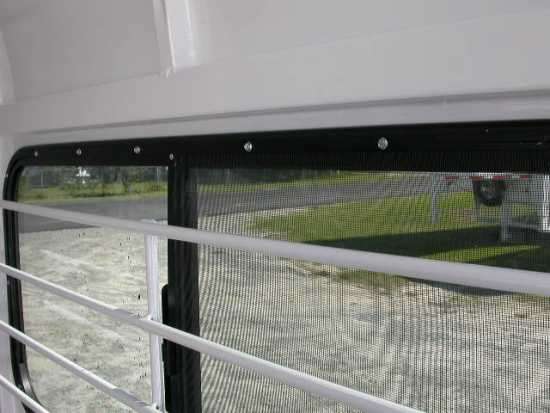

Windows in stall area - (2) siding width screens
20"x51"
Windows in rear doors - (2) sliding with screens
20"x24"
7-Pin RV Style Plug
Standard
Warranty

(4) Year on Structure
(2) Year bumper to bumper
(1) Year on non-Double D Manufactured parts

V-Sport

Base Price: $10,600


Optional Features
Price
Horse Area convenience options
7'6" Height option only (NOTE: works well for taller horses) $
800
Big Horse Option: adds 6" extra height for a total of 7'6", 6" extra length to the horse body area, and 6" extra width to accommodate even the largest size horses $
1550
Change flooring to Rumber in place of 2"x8" pressure treated pine (rumber has a life time warranty, doesn't require a rubber mat and is easy to clean, prevents slippage) $
800
Fans for hauling in the summer time (priced each) $
85
Remote switch for interior horse fans $
60

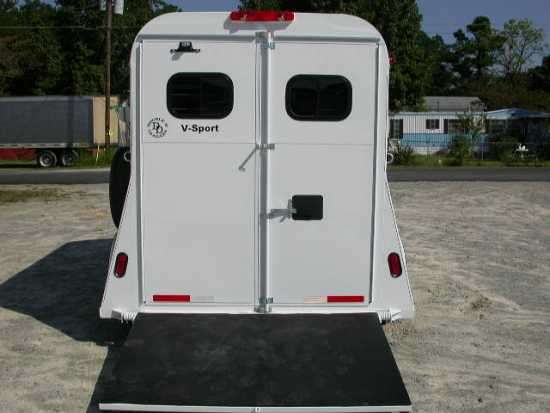

Ramp door in addition to full height rear doors (NOTE: your new straightload trailer is standard with two full height doors and step up.  Use this feature to add a spring assist folding ramp in addition to your full height doors) $
1200
Ramp door: use this feature to remove your full height rear doors, and add a ramp with dutch style fold around top doors $
950
Extra interior tie ring (one is standard per horse, add a second for tying hay bags) NOTE: Lay flat tie rings are standard to prevent injury to a horses eye, specify quantity) $
30
Extra exterior tie ring (2 are standard) specify location of additional rings $
40
Feed bag works great for feeding while trailering (priced per stall) $
65
Stud gate : typically used when trailering a stud. Also, many people prefer to use one stall for storage. This feature keeps your cargo one one side $
450
Popular Add on's $
Outside light at one escape door, wired to switch on rear left outside (specify one or two lights) $
65
Add a 2-Tier saddle tree in the "V" portion of the trailer $
350
Blanket bar on saddle tree $
85
outside 55 Watt rear halogen loading spot light for night time use on remote switch $
120
Battery—Interior deep cell 12 Volt wired to charge from truck.
Suggestion: This deep cell battery (holds a charge for long time) is installed inside the dressing room and powers your interior lights, fans, and load lights, without being plugged into your truck. It is wired so that your tow vehicle will trickle charge it when driving.		 $
285
Add a set of (3) Bridle hangers to the "V" portion of the trailer $
55
Electric jack (requires battery) $
550
Battery add on for hydraulic jack and wiring $
225
Accessory tie brackets (used on the front of the trailer inside the "V" area, work well for securing cargo while transporting. Keeps your items from rolling around) $
185
Color other than white $
400
Stainless nose sheet on "V" portion of trailer (NOTE: this option has a "mirror" style sheet on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer) $
600
Aluminum wheels in place of standard gray wheels (NOTE: use this feature to upgrade to aluminum wheels.  They are worth the extra cost in adding longevity to your trailer. These wheels will look good 10 years from now) Spare remains gray and is covered with a tire cover, add $150 to change the spare as well $
600

Sub Total *
 $
  Your State estimated Sales Tax (enter your tax rate, %) $
  Your State estimated License Fees $
  Document Fees $
  Service Provider Fee (if financing) $
  Bank Closing Cost (if financing) $
  Delivery (specify miles from factory, free within 1000 miles)
Click here to find your distance from the factory 		$

Total with Fees *
$

  If you are financing and/or have a trade in, please complete the following:
  Down Payment amount
NOTE: most banks like to see a minimum down payment of 10% of the purchase price, without sales tax		 $
  Trade in Value of your current trailer $
  Payoff on your trade in trailer (how much you owe at your bank, if any) $
  Equity in Trade In $
  Total Down Payment with Trade In $

Financing Amount *
 $
  Interest Rate (enter the Interest Rate from your Bank, %)   %
  Term of Loan in Months
For loans of $10K or more, most banks will go up to 120 months.  For less than $10K, the maximum term is 84 months.

Estimated Monthly Payments *
 $
  * Options calculations are for estimation only. Firm quotes available on request.
