2-Horse  Side Tack Trailer





Base price:
$9,750
(Click here to price this trailer with additional options)



- Floor Plan (PDF Format)
- Features & Options
- Images
- Request Additional Information Form



The Double D Sixteen Foot 2-Horse Side Tack Stock Combo Trailer comes standard with an 6' long dressing room and is priced for the weekend trail rider.   The large dressing room has all the comfort needed for the overnight camping trip and accommodates two people with ease.  The dressing room is equipped with three bus windows, sub-floor, a camper door and roll-up enturi roof vent.  An access door to the horse area is a standard feature.  This trailer comes with the Double D exclusive front tack compartment which is fully enclosed and accessible from the outside.  The lighted tack room is finished with two slide out saddle racks and bridle hooks.   Inside the dressing room, the tack room is rounded for safety and to add space in the dressing area.  The top space is ideal for storage. Trailer comes standard with slick skin and wide graphics package, smoked plywood kick lining in the back, rubber bumper, galvanized no rust latches, stainless steel hinges and chrome caps with white wheels, spare included. All Trailers are now undercoated.

Weight of this trailer is 4200 lbs approximately and can be towed with most any 1500 series truck.

All Double D Trailers are now built with the new **NO Rust Galvaneal metal and painted with a Valspar Acrylic enamel paint system. All metal is stored indoors so there is no rust on the trailers when they roll out of the factory...everything is washed with a steamer and iron phosphate to open up the pores of the metal to allow the primer to stick better, and to remove oil residue. Once that dries, all the seams are sealed with 3M sealant inside and out. Then we prime with two coats of Valspar, automotive primer and paint with three coats of Valspar automotive paint. End result is a very durable, smooth, shining, long lasting finish.


Standard Features:

  • 1"x 2"x 14 gauge uprights
  • 20 gauge rolled top
  • 16 gauge sides
  • 6" channel iron neck
  • Undercoating on all cross members and undercarriage
  • Stainless steel no rust hinges
  • Galvanized latches
  • Smooth Sides with Wide Graphics
  • Smoked Plywood Kick lining standard
  • Rubber Bumer
  • 7' tall, 6' wide
  • Full nose
  • Electric brakes single axle
  • Solid rear gate with safety latch
  • CCA pressure treated pine flooring
  • 24" centers on uprights,
    crossmembers & roof   supports
  • Galvaneal Teardrop fenders



  • 2-5/16" adjustable coupler
  • Spring loaded jack
  • Dexter 3500# E-Z lube axles
  • Gravel guard and pinstriping
  • D.O.T lighting and Tape
  • Aluminum Treadplate Gravel Guard
  • Safety Chains
  • Straight dressing room wall to the Chasis
  • Escape door in dresssing room wall
  • Venturi roof vent in dressing room
  • Dome lights throughout
  • Sub-floor in dressing area
  • Camper door with screen
  • Tie loops for each horse
  • Heavy duty rubber mats in stalls
  • 3 sliding windows (12x36)
  • Double D Exterior finish package
  • Sealed seams in Dressing Area, roof,
    fenders & uprights
  • Wide Graphics package
  • 2-Tier Side Tack with pull out racks



Price Calculator

Select optional features and then click calculate price to see the final price:


Base Price: $9,750
Optional Features Price
Rubber in place of plywood lining $550
6-8' Wide $644
Chrome Wheels, (white is standard) $250
Plywood Kick Lining Standard
Plexiglass Track/includes Lexan $800
Available Color ( Chart) N/C
Air Conditioner with Heat $850
Brake Upgrade (All 4 Wheels) $225
Awning $800





Would you like more information?




Images:
(Click small thumbnail picture for larger photo)

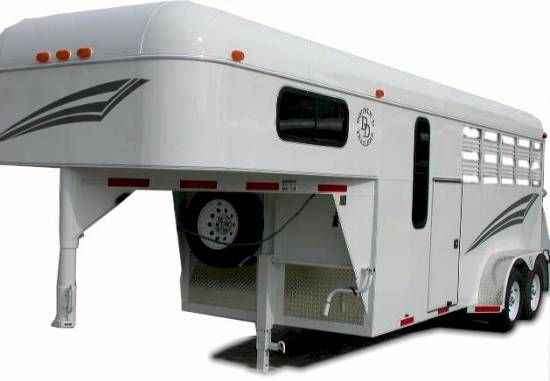

2H side tack with 6' dressing room, picture windows, smooth skin with graphics all standard

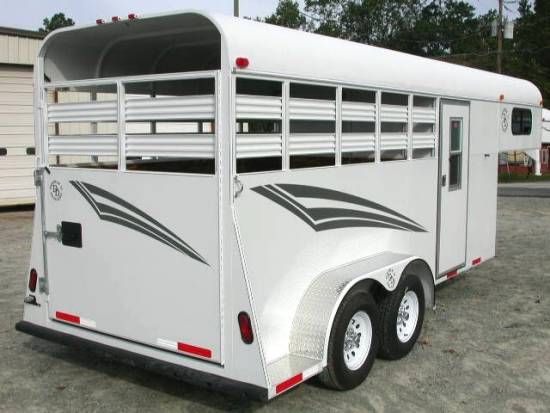

7' height standard, rubber bumper, galvanized latches and stainless hinges for no rust

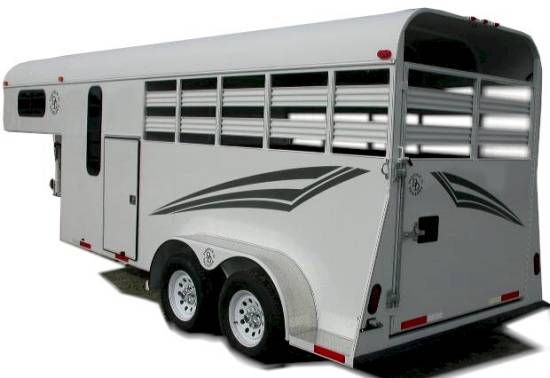

Available in many graphic styles and colors, your choice, same pricing

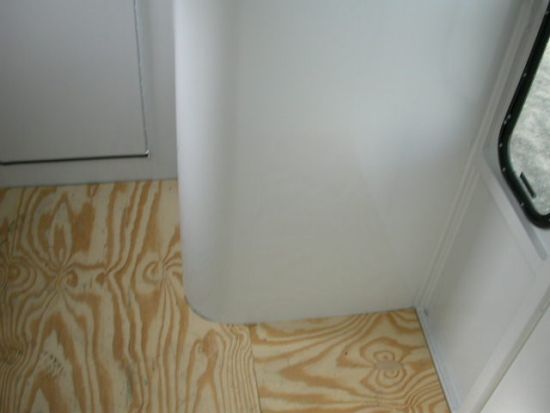

Inside dressing room, plywood subfloor on top of 2x8" pressure treated pine, side tack compartment

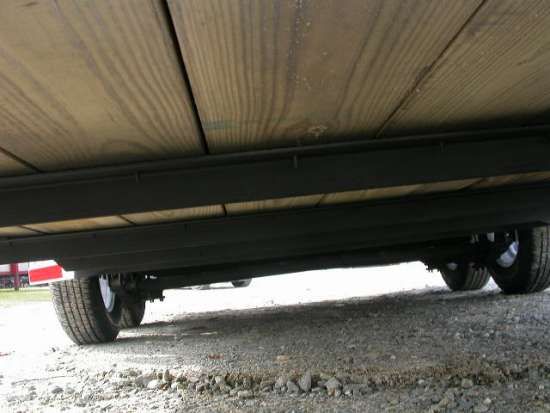

All Trailers are now undercoated for more protection over the years

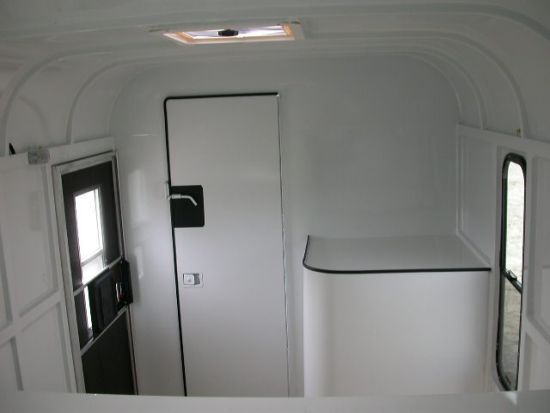

Dressing room comes with walk thru door, roof vent, and side saddle compartment accessable from the outside of trailer.

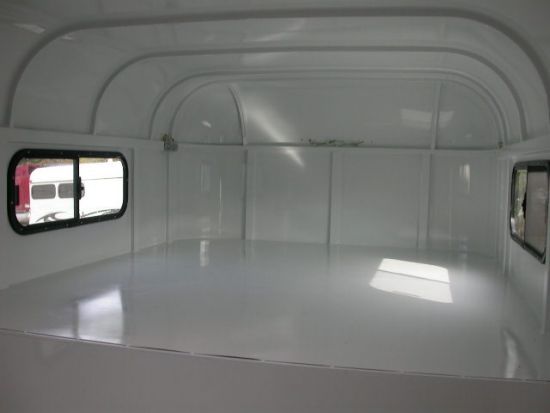

Gooseneck nose area

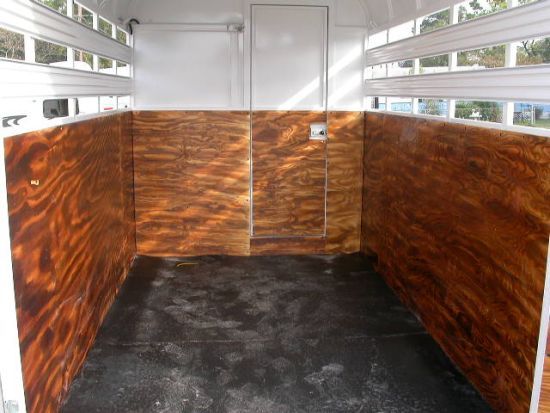

Horse area comes without dividers and aren't available, standard with lining and mats and walk thru door

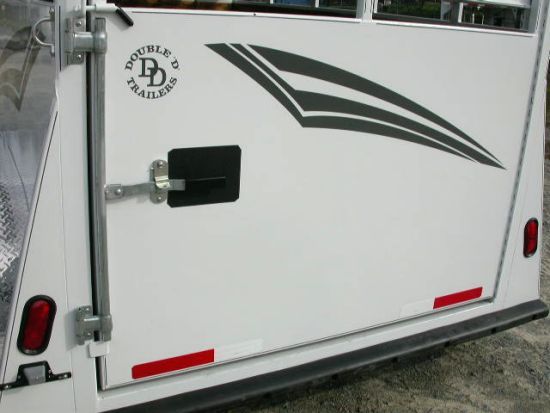

Galvanized latches, rubber bumper

Side Tack compartment, sliding racks, hooks, lights and lockable.
