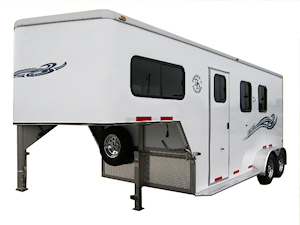

| 2H Deluxe model |
Base price:
- Floor Plan (shown with oversize dress)
|

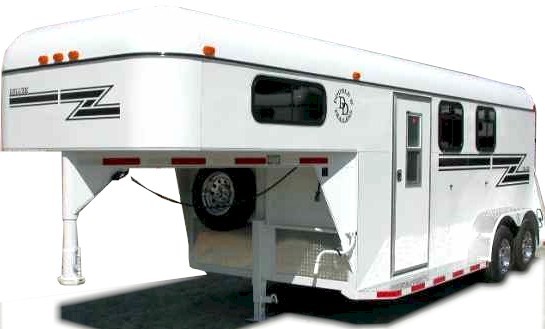

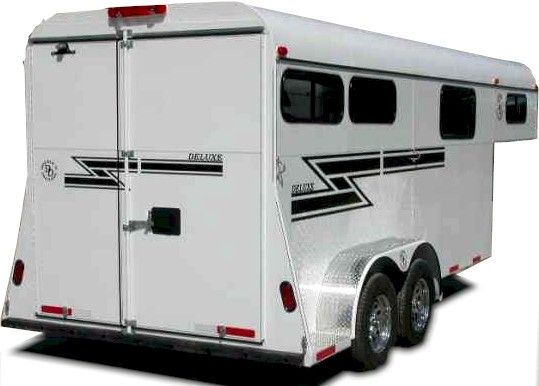

2 Horse Gooseneck trailers are in high demand since they can be towed with most half ton pick up trucks. Ideal for hauling one to two horses, your new 2 Horse Deluxe will serve your purpose from trail riding to weekend events. With the aerodynamic V-shaped nose design, your new trailer may be towed by a short bed truck without any turning issues.
Slant load layouts work well because it allows your axles to be moved farther forward than on a straight load, thus reducing tongue weight on your tow vehicle. Also, slant loads utilize the space of your trailer more efficiently and allow for your SafeTack ® slant load design.
**2 Horse Gooseneck with dress Slant load difference:
This Model is available in extra heights and length to accomodate varying size horses |
Slant load 2 Horse Gooseneck with dress |
| Body Color | White is Standard. Other colors available |
| Vinyl stripe Color and Graphic | |
| Weight (without options) | 4200 lbs |
Standard |
|

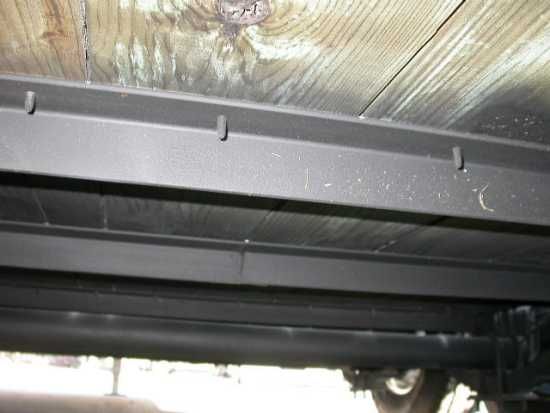

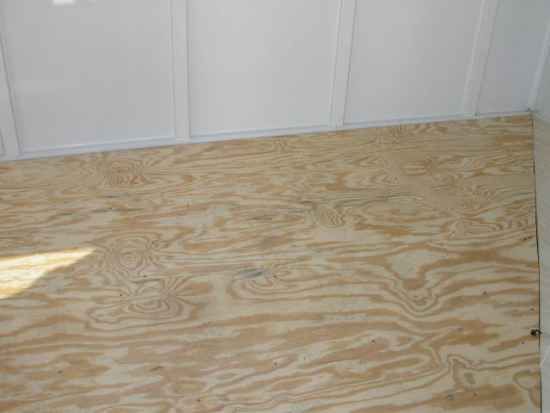

| 2"x8" pressure treated pine flooring on 16" crossmembers | Standard |
| Exterior Skin | 22 Gauge Zinc Sheets with Baked on Siliconized Paint |
| Overall box length | 14' |
| Overall trailer length with gooseneck | 21' 6" |
| Dress side | 40" short wall x 88" long wall |
| Walk thru door to horse area | Standard |
| Inside Height | 7', optional 7'6" |
| Stall Length | 122" diagonal, 96" divider length |
| Stall width | 40" |
| Coupler | 2 5/16" Adjustable height |
| EZ Lube durable never adjust brakes 6,000 # capacity per axle | Smooth leaf spring suspension |
| Brakes | 4 wheel |
| Wheels | Powder coated gray, optional aluminum |
| Tire Size | 232/75R15 (D) Radial |

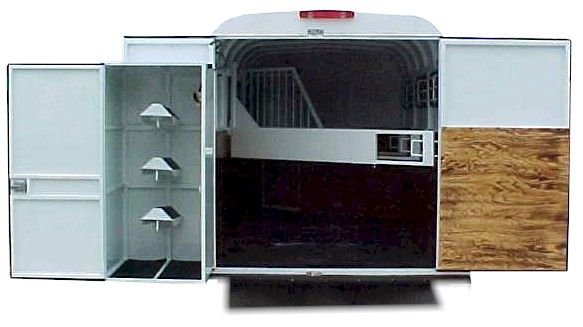

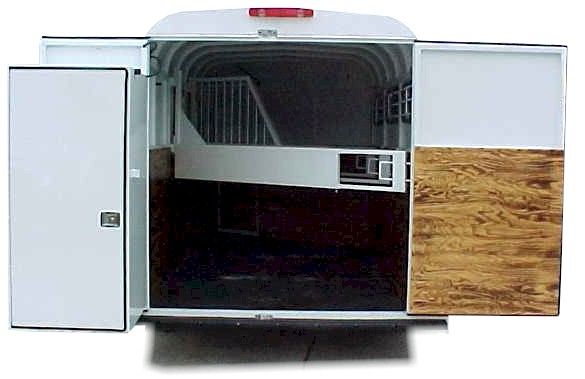

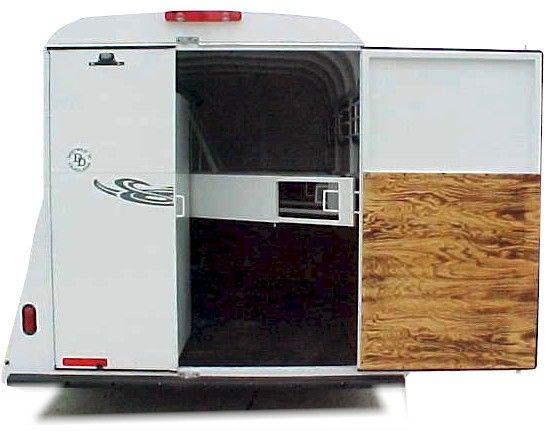

| Full Height rear doors with Safe-Tack® Design | Standard |
| 24" Diamond plate Gravel Guard at Nose | Standard |
| Running board steps down dressing room side | Standard |
| Mat in dressing room floor | Standard |

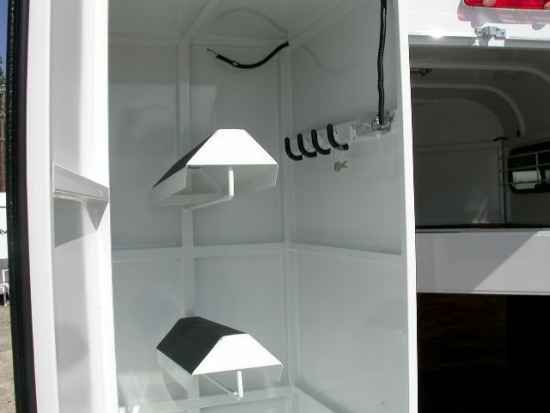

| Saddle racks | 2 |
| Safe-Tack® Slant load design | Standard |
| Bridle Hooks | 3 |
| Spring loaded drop leg jack | Standard |
| Marker Lights on Fender | Standard |
| LED Turn Signal Lights on Rear | (2) Standard up high |
| Extra divider on rear stall to prevent horses from backing out when rear doors are opened | Standard |
| Spare Tire | Standard |
| All locks keyed the same | Standard |

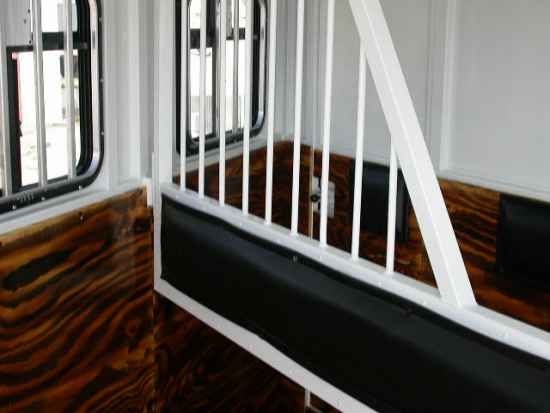

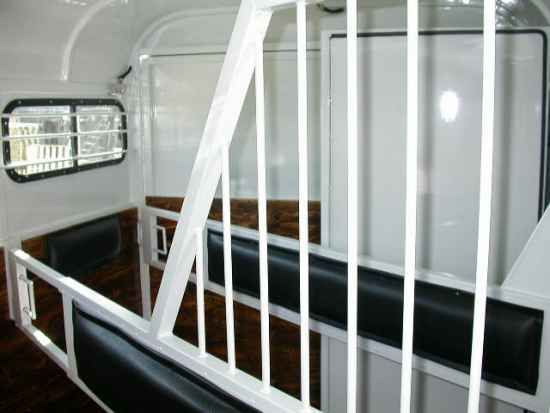

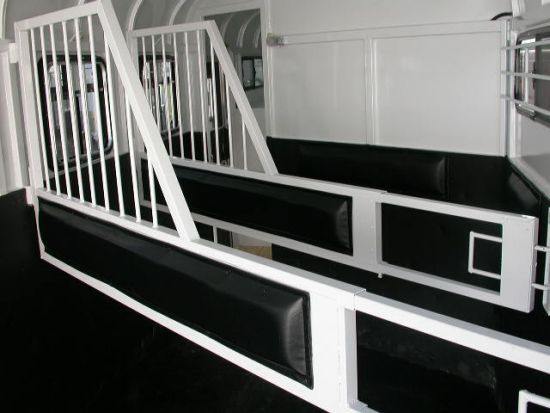

| Aluminum Slant dividers with hand made padding and safety slam latches | Standard Removable |

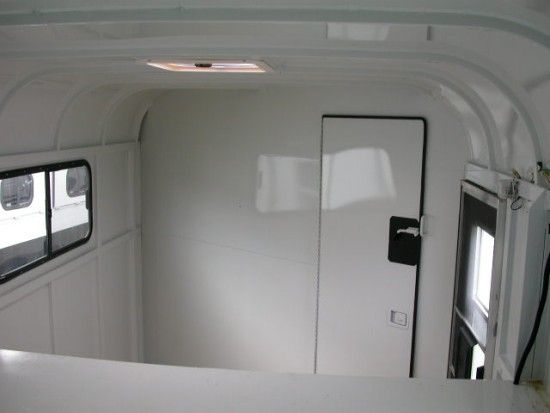

| 24" walk thru Escape door from dress to horse area | Standard |
| Horse area roof vents, one per stall aluminum | Standard |
| Custom hand made padding on dividers and slant wall | 2" Standard |
| 30" dress door factory built sounds like a "door" when opened and closed | Standard |
| SafeKick® Wall System | Standard |
| Heat reflective SafeBump® Roofsystem | Standard |
| Insulated side walls and roof in horse area for maximum temperature protection and safe, quiet ride | Standard |
| Floor Mats in horse area | Standard |
| Interior Tie Rings per stall | 1 |
| Exterior Tie Rings per horse | 1 |
| Horse Area Roof Vents one per horse | Standard |
| Lights in horse area on rear remote switch | 3 |
| Light in dress, one over dress door, one in gooseneck | 2 |
| Rechargeable emergency Break-away system | Standard |
| Windows in gooseneck - (2) sliding with screens | 20"x51" |

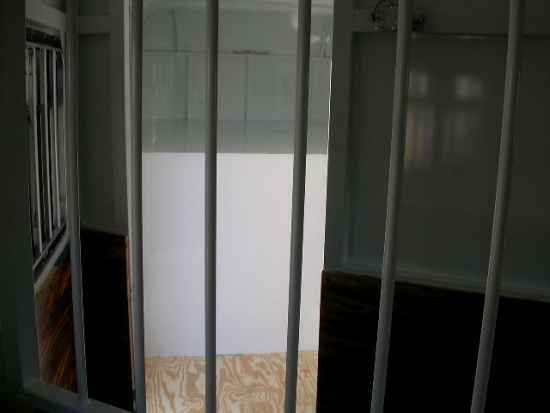

| Windows in stall area - (2) drop down with bars on head side. Windows and bars fold independent, features mid-latch easy to reach system | 24"x30" |
| Windows on butt side- (1) sliding with screen | 20"x51" |
| 7-Pin RV Style Plug | Standard |
| Warranty | (4) Year on Structure |
|
