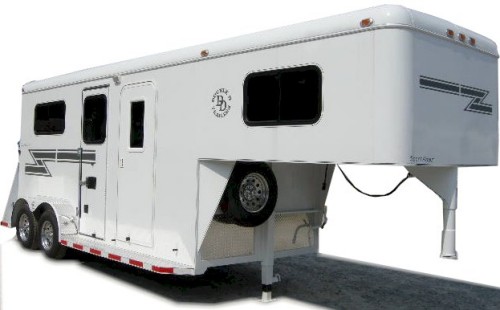

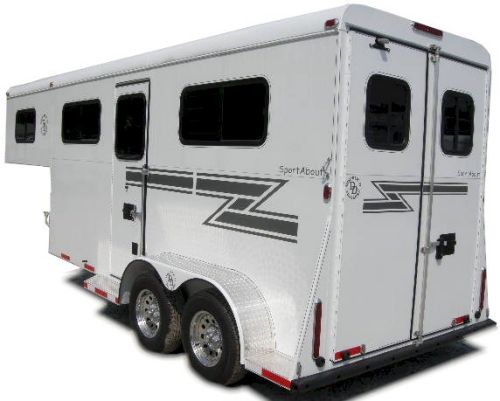

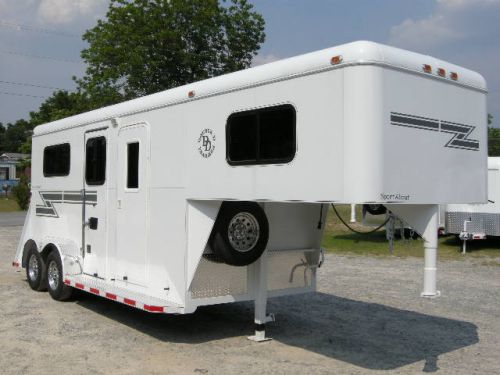

Sportbout Trailer

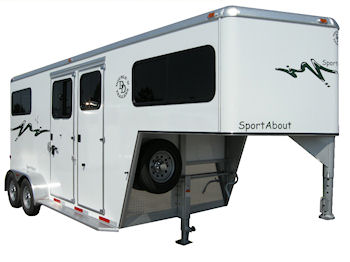

Check out our new "Sportabout" design.
This two horse trailer comes standard 7' tall, has lined and
padded stalls, and is fully enclosed. It is a very unique design
in that it has a half manger in the horse area. The half manger
provides adequate space for tack and supplies and does allow for
one horse to be fed while in transit. Loading is very easy in this
trailer because when loading the second horse, you can exit
through the walk through door to the dressing room and not have to

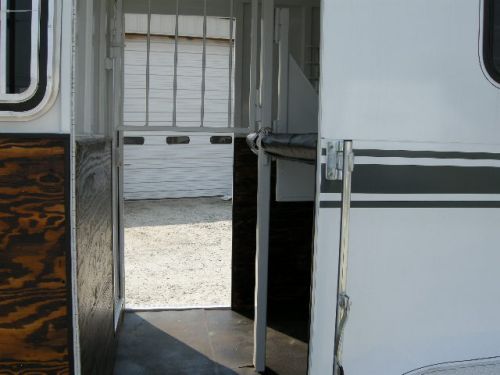

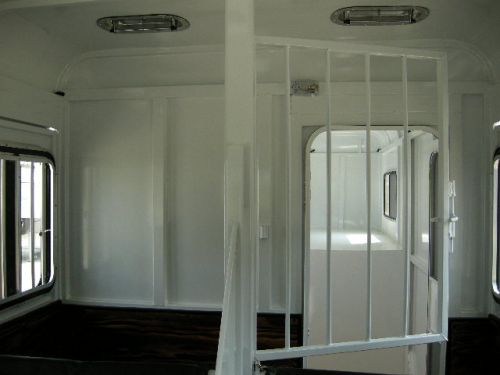

climb out of a small door on the side. The swinging stall divider
also works well for loading, plus it can be easily removed for
other hauling purposes such as moving hay to the barn. Whether
showing or trail riding, the "Sportabout" is an all-around trailer

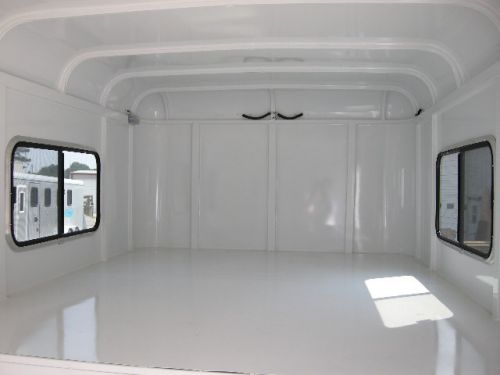

for everyone. The 6' dressing room provides plenty of space
upfront for overnight stays, and an awning and A/C can easily be
installed for more comfort and style. And don't forget, our smooth
skin design with the **No Rust Galvaneal will last a lifetime.
Weight of trailer is 4300 lbs
approximately and can be towed with most any 1500 series half ton
pick up truck.
All Double D Trailers are now built with
the new **NO Rust Galvaneal
metal and painted with an electrostatic
paint system. All metal is stored indoors so there is no rust
on the trailers when they roll out of the factory...everything
is washed with a steamer and iron phosphate to open up the pores
of the metal to allow the primer to stick better, and to remove
oil residue. Once that dries, all the seams are sealed with 3M
sealant inside and out. Then we prime with two coats of Valspar,
automotive primer and paint with three coats of Valspar automotive
paint. End result is a very durable, smooth, shining, long lasting
finish.
Features &
Options:
Standard features:
-

- 1"x 2"x 14 gauge uprights
- 20
gauge Galvaneal rolled top
- 16
gauge Galvaneal sides
- 6" channel iron neck
- 6' Wide
- 7' Tall
- Full
nose
- Electric brakes

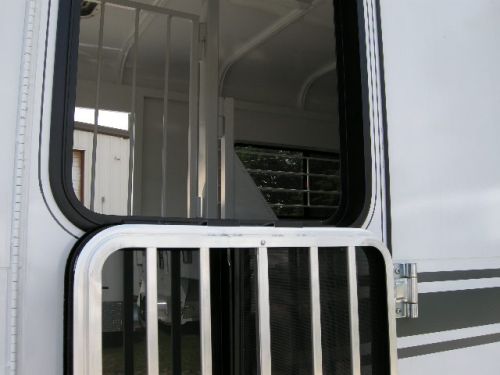

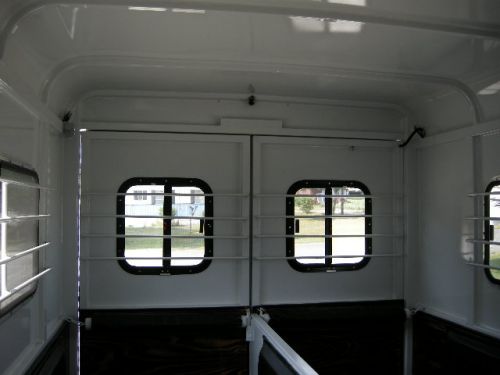

- Double
rear doors with 12"x18" windows

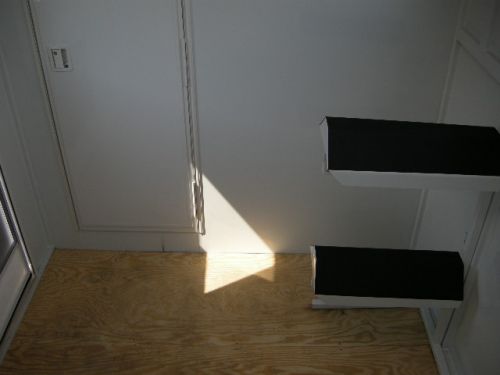

- Large 6' dressing room
- Rubber
Bumper
-
2x8"
CCA pressure treated pine flooring
- 24" centers on uprights,
cross-members & roof supports
- Fully enclosed smooth skin

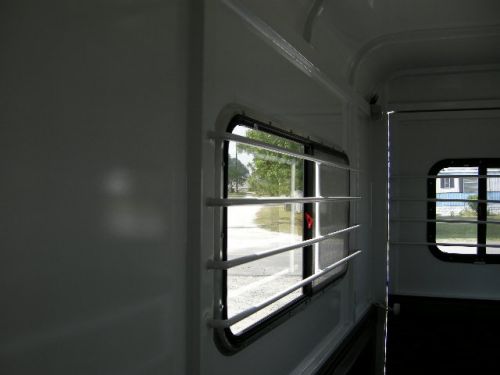

- Two large 18x42" windows in horse area
- Galvaneal

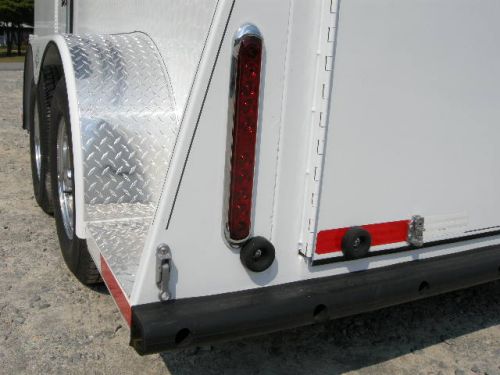

Teardrop fenders with rubber edge wrap
- 2-5/16" adjustable coupler
- Spring loaded jack
- Dexter 3500# E-Z lube axles
|
- 15" radial tires
- Trailer
weight 4300 lbs approximately
- Aluminum
Treadplate Gravel guard
- D.O.T
lighting and D.O.T. tape
- Chrome
Wheels including Spare
- Venturi roof vent in dressing room
- Lights
throughout trailer
- Sub-floor in dressing area

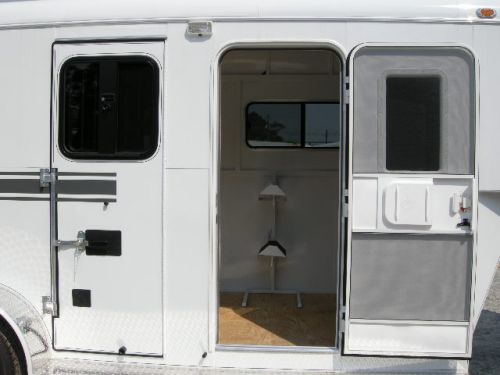

- Camper

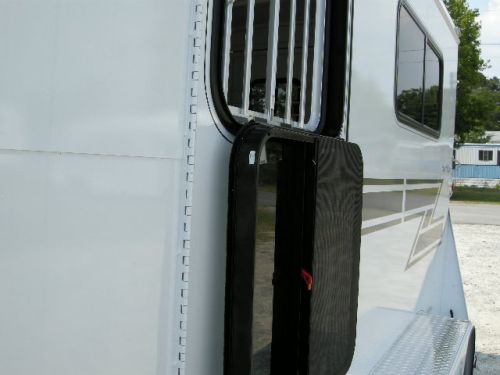

door with Screen
- Tie loops for each horse
- Heavy duty rubber mats in stalls
- Two
12"x36" Bus windows in Nose area
- One 18"x42" Window in dressing room

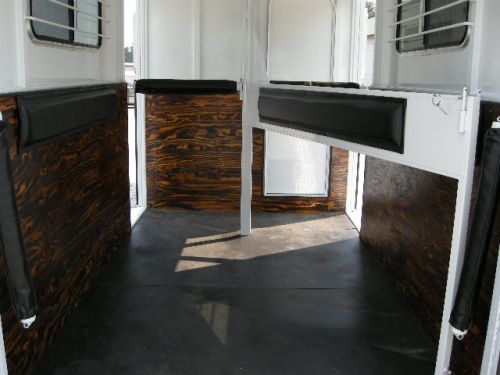

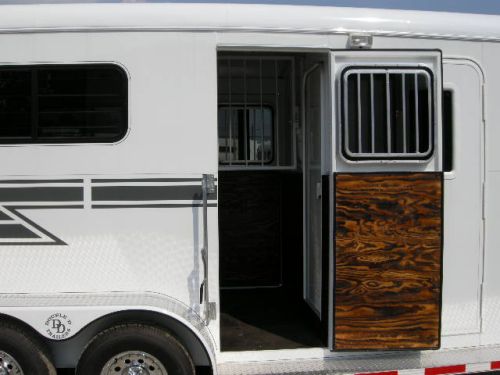

- Smoked plywood kick lining

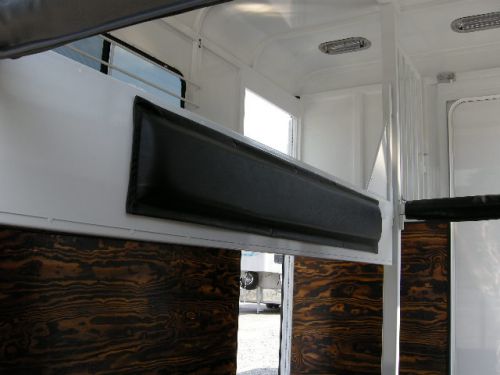

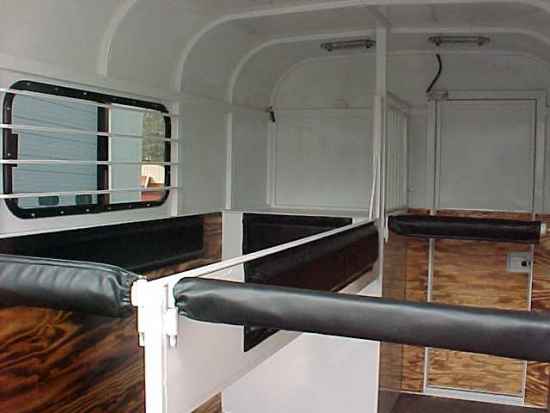

- Full padding

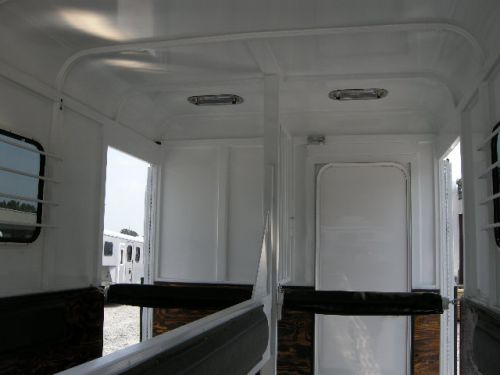

- Removable Horse divider

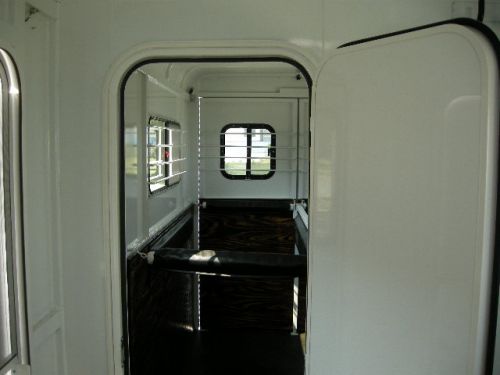

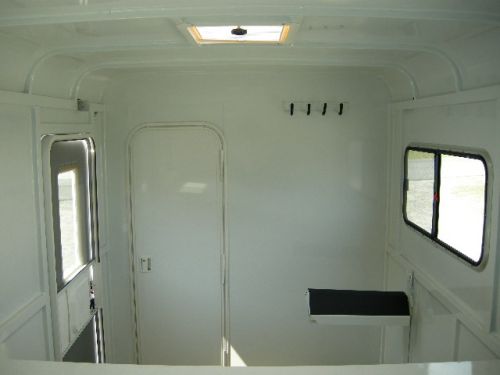

- Walk-thru door in dressing room
wall

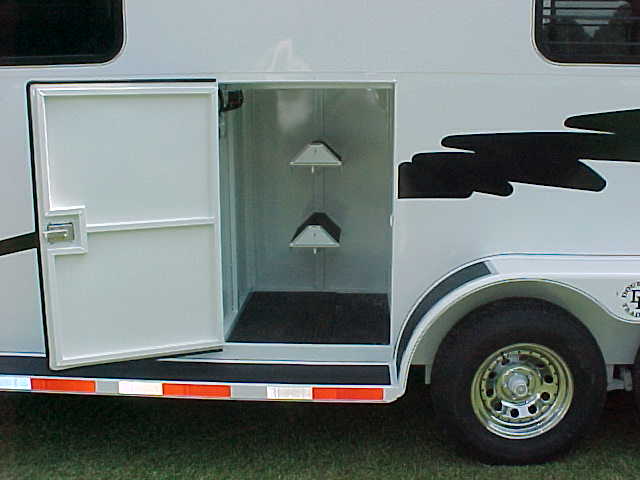

- Fully
Contained Tack Compartment
- Wide

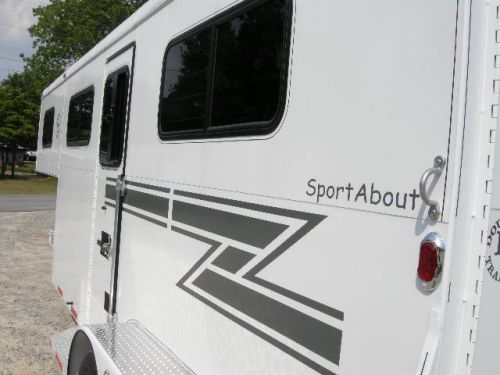

GRAPHICS
package/pinstripe
- Pop-up roof vents in each stall
- New
Electrostatic Paint System
- All seams sealed
|
Optional Features:
| Roll-out
matching awning |
|
$800 |
| Brake
up-grade all four |
|
$225 |
| Graphics Chart |
|
included |
| Exterior Color Chart |
|
included |
| Air
Conditioner with heat |
|
$850 |
| Ramp Load |
|
$950 |
| Roof Mount Hay Rack (aluminum) |
|
$950 |
| Rubber Wall liner Double Walled |
|
$650 |
| WarmBlood Option: 7'6"
height, 6'6" width, eliminate manger and
shorten dressing room 6" to increase horse
stall length, extra brakes |
|
$1600 |
| 7'6" height only |
|
$800 |
Would you like more information?
