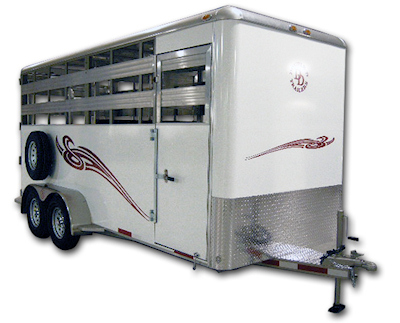

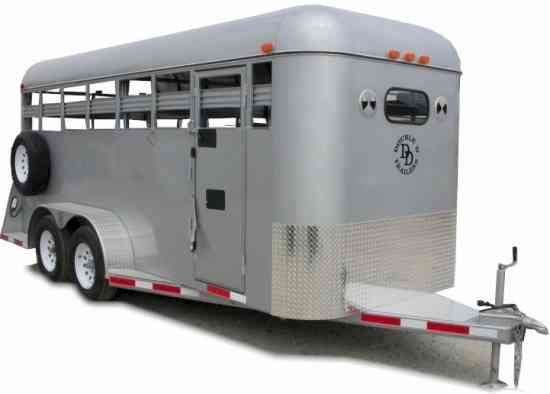

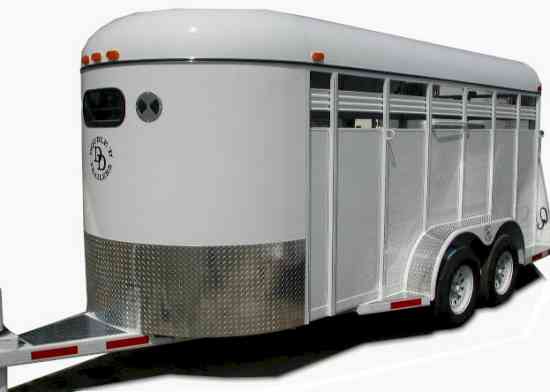

16' Bumper Pull Stock Trailer



Base price:
$8,995

- Customize your new Stock Trailer






- Features & Options
- Floor Plan
- Photo Gallery
- Request Additional Information Form

Stock trailers get their name from "livestock". Your new bumper pull stock trailer is specifically designed for hauling all types of livestock including cattle and horses.

**For Hauling Cattle, sheep, goats and other livestock:

  • Z-Frame Technology on 16" centers for durability (learn More)
  • Heat reflective roof to protect during hauling
  • Aluminum Center gate with ability to unlatch while you are standing outside of your trailer. This prevents you from injury.

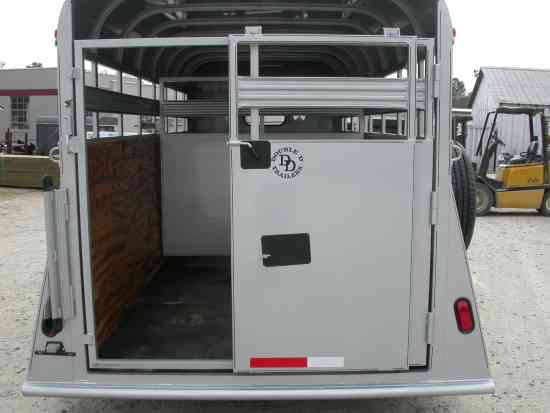

  • Sliding rear gate on the rear so you may back up to a loading chute. Your new sliding gate is built out of aluminum, and easily slides back and forth with positive safety latches

**For Hauling Horses:

  • Z-Frame Technology on 16" centers for durability (learn More)
  • Heat reflective roof and SafeKick® Wall System  (learn more)
  • Aluminum Center gate to divide into two stalls to form a box stall if needed
  • Available with a one piece rear door so you may completely open for loading and unloading.
  • Escape door at the front, choose your location of your door

Standard Features

This Model is available in extra heights and length to accomodate varying size horses and other livestock

 Bumper pull stock trailer
Body Color
White is Standard. Other colors available
Vinyl stripe Color and Graphic
Weight (without options)
3200 lbs
Z-Frame Technology
Standard

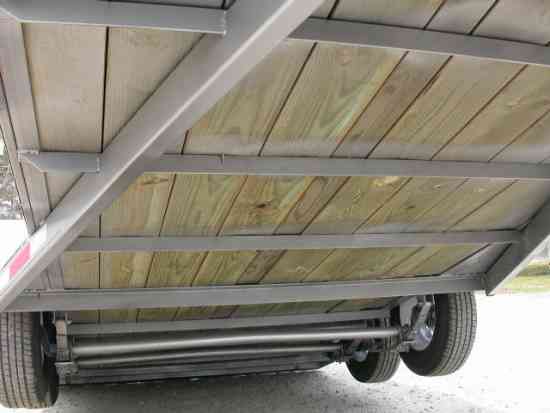

2"x8" pressure treated pine flooring on 16" crossmembers
Standard
Exterior Skin
22 Gauge Zinc Sheets with Baked on Siliconized Paint
Overall box length
16'
Escape door in front area
Standard
Inside Height
7', optional 7'6"
Stall Length
two 8' stalls
Stall width
72"

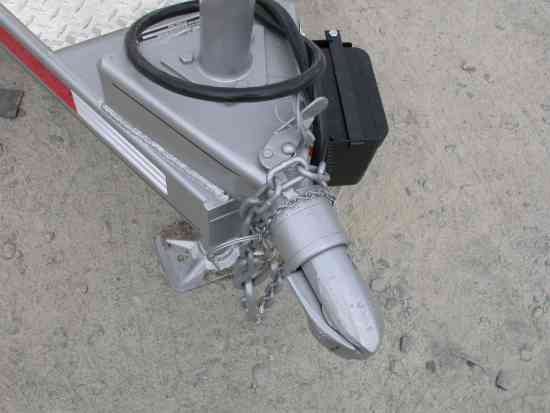

Coupler
2" Ball
EZ Lube durable never adjust brakes 3,500 # capacity per axle
Smooth leaf spring suspension
Brakes
4 wheel
Wheels
Powder coated gray, optional aluminum
Tire Size
225/75R15 (D) Radial

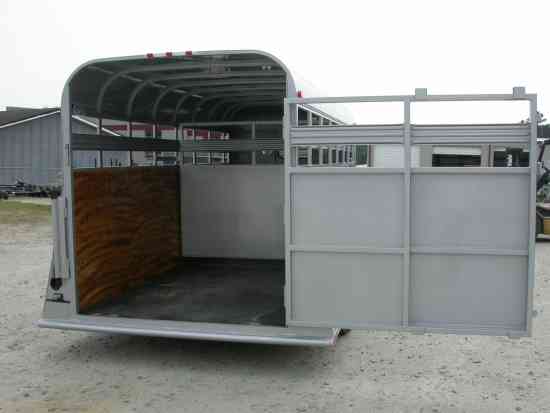

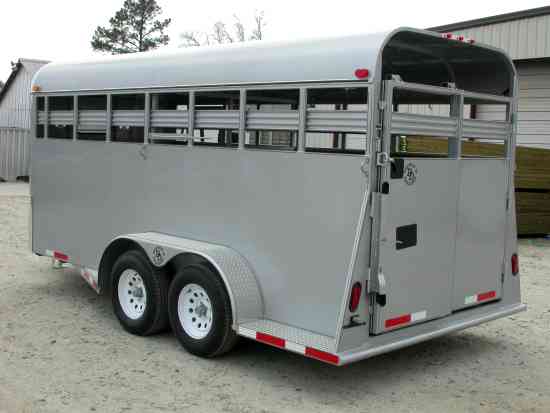

One piece rear door with cam latch or sliding rear gate for hauling cattle
Standard

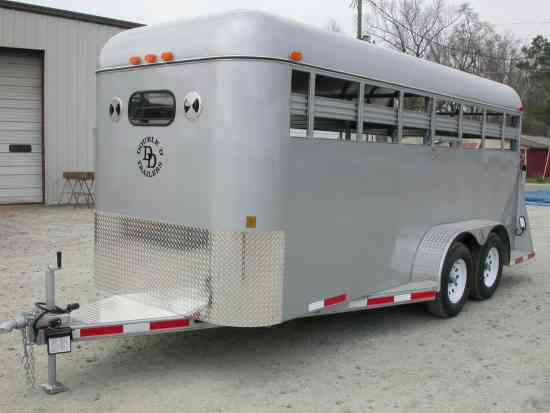

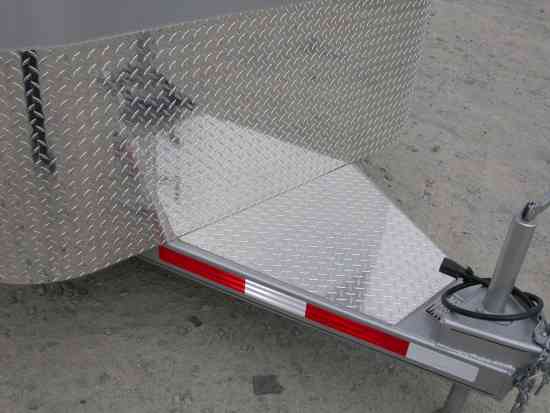

24" Diamond plate Gravel Guard at Nose
Standard
Mats in stock arear
optional
Side Wind Jack
Standard
Marker Lights on Fender
Standard
LED Turn Signal Lights on Rear
(2) Standard up high

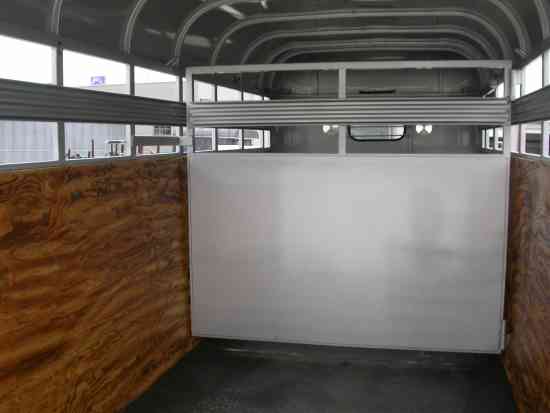

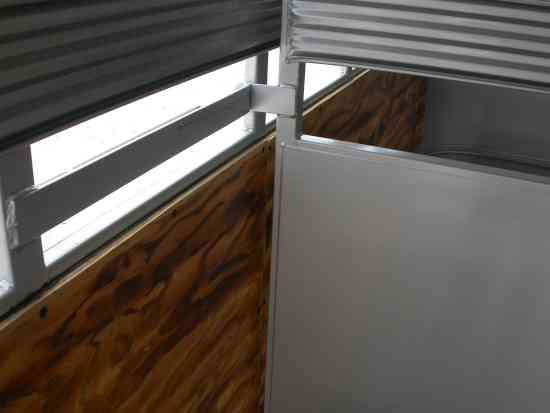

Center gate built in aluminum
Standard

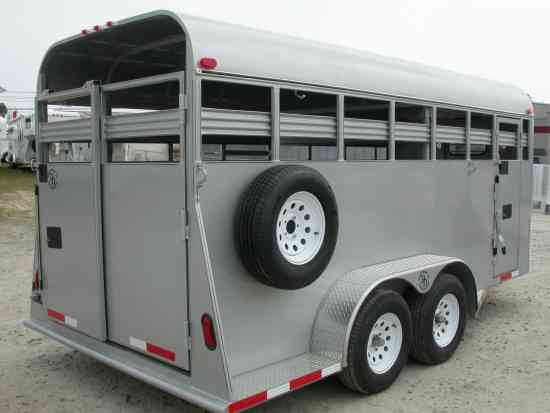

Spare Tire
Standard
All locks keyed the same
Standard
SafeKick® Wall System

Standard
Heat reflective Roof system
Standard
Insulated side walls for maximum temperature protection and safe, quiet ride
Standard
Interior Tie Rings
optional
Exterior Tie Rings per horse
optional
Lights in stock area on rear remote switch
2
Rechargeable emergency Break-away system
Standard
7-Pin RV Style Plug
Standard
Warranty

(4) Year on Structure
(2) Year bumper to bumper
(1) Year on non-Double D Manufactured parts

16' Bumber Pull Stock

Base Price: $8,995


Optional Features
Price
Horse/stock area convenience options
7'6" Height option only (NOTE: works well for taller horses) $
900
Add 1' to 2' per horse stall for Draft size or Warm blood horses (specify front or rear stall and footage) $
600
Upgrade axles from 3500 lb axles to 6,000 lb for larger horses or heavier loads $
550
Increase width to 81" for more cargo room (requires axle upgrade) $
800
Change flooring to Rumber in place of 2"x8" pressure treated pine (rumber has a life time warranty, doesn't require a rubber mat and is easy to clean, prevents slippage) $
1100
Fans for hauling in the summer time, specify quantity (priced each) $
85
Remote switch for interior horse fans $
60
Ramp door: NOTE: your stock trailer is standard with a step up and a one piece rear door with a slider. Use this feature to split the rear doors into two separate doors, and add a spring assist ramp in addition to the full height rear doors $
1250
Ramp door with dutch doors: NOTE: your bumper pull trailer is standard with a step up and a one piece rear door with slider. Use this feature to eliminate the one piece stock door, and replace with a folding ramp door and two stock gates fold around dutch style doors up top. $
950
Interior tie ring (none are included specify quantity) $
30
Extra exterior tie ring (zero are standard) specify location of exterior rings $
40
Extra Front stall escape door (NOTE: one door is standard on the passenger side, add a second escape door on the drivers side for additional safety) $
550
Add a slider door to the center stock gate $
300
Popular Add on's
Outside 55 Watt rear halogen loading spot light for night time use on remote switch $
120
Outside light at escape door, wired to switch on left rear of trailer $
65
Electric jack (requires battery) $
550
Battery add on for electric jack/rack and wiring $
225
Color other than white $
400
Stainless nose sheet on "V" portion of trailer (NOTE: this option has a "mirror" style sheet on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer) $
600
Aluminum wheels in place of standard gray wheels (NOTE: use this feature to upgrade to aluminum wheels.  They are worth the extra cost in adding longevity to your trailer. These wheels will look good 10 years from now) Spare remains gray and is covered with a tire cover, add $150 to change the spare as well $
600

Sub Total *
 $
  Your State estimated Sales Tax (enter your tax rate, %) $
  Your State estimated License Fees $
  Document Fees $
  Service Provider Fee (if financing) $
  Bank Closing Cost (if financing) $
  Delivery (specify miles from factory, free within 1000 miles)
Click here to find your distance from the factory 		$

Total with Fees *
$

  If you are financing and/or have a trade in, please complete the following:
  Down Payment amount
NOTE: most banks like to see a minimum down payment of 10% of the purchase price, without sales tax		 $
  Trade in Value of your current trailer $
  Payoff on your trade in trailer (how much you owe at your bank, if any) $
  Equity in Trade In $
  Total Down Payment with Trade In $

Financing Amount *
 $
  Interest Rate (enter the Interest Rate from your Bank, %)   %
  Term of Loan in Months
For loans of $10K or more, most banks will go up to 120 months.  For less than $10K, the maximum term is 84 months.

Estimated Monthly Payments *
 $
  * Options calculations are for estimation only. Firm quotes available on request.
