4 Horse Deluxe Trailer
This fully enclosed 4-Horse
model is designed for the weekend rider or show person. The
dressing area is finished with sub-floor, a camper door, and
sliding bus windows. The slant dressing room comes standard with a
walk-through door to the horse area. Each stall in the horse area
has a pop-up roof vent, drop down feed windows with aluminum
safety bars, and sliding windows with safety bars and screen.
Smoked plywood kick lining is installed on the left and right
walls to prevent damage to the trailer. Also, check out our new
exclusive rear Tack Around design--It has easy access for tack and
works well for loading and un-loading the horse. This new design
leaves the entire rear of the trailer open yet still utilizes the
space. Call for more details.
Weight of this trailer is 5500 lbs
approximately, 2500 series 3/4 ton pick up truck recommended for
towing.
All Double D Trailers are now built with
the new **NO Rust Galvaneal
metal and painted with an electrostatic
paint system. All metal is stored indoors so there is no rust
on the trailers when they roll out of the factory...everything
is washed with a steamer and iron phosphate to open up the pores
of the metal to allow the primer to stick better, and to remove
oil residue. Once that dries, all the seams are sealed with 3M
sealant inside and out. Then we prime with two coats of Valspar,
automotive primer and paint with three coats of Valspar automotive
paint. End result is a very durable, smooth, shining, long lasting
finish.
Features &
Options:
Standard features:
-
- 1"x 2"x 14 gauge uprights
- 20
gauge Galvaneal rolled top
- 16
gauge Galvaneal sides
- 8"
channel iron neck
- 6'8" wide
- 7'
tall
- Full
nose
- Rubber
Bumper
- Four
Wheel Electric brakes
- Solid rear gate with safety latch
- 2x8"
CCA pressure treated pine flooring
- Spare
Tire/wheel all Chrome
- 24" centers on uprights,
crossmembers & roof supports
- Galvaneal
Teardrop fenders
- 2-5/16" adjustable coupler
- Spring loaded jack
- Dexter
Heavy Duty 7000# axles
- 16" Radial Tires (load range E)
- Aluminum
Treadplate Gravel Guard
- D.O.T
lighting and Tape
- Safety
Chains
|
- Formed outside smooth skin
completely enclosed with Galvaneal
- Slant dressing room wall
- Escape door in dresssing room
wall
- Venturi roof vent in dressing
room
- Lights throughout
- Sub-floor in dressing area
- Camper door with screen
- Dressing room running board
- Tie loops for each horse
- Heavy duty rubber mats in stalls
- Sliding bus windows (three 12X36
in dressing room)
- Telescoping slant dividers
- Fully enclosed rear tack
compartment
with swing out saddle rack
- Smoked plywood kick lining
- Pop-up roof vent for each
horse
- Drop down feed windows with
aluminum bars
- Wide
GRAPHICS package
- Double D Exterior finish package
with electrostatic paint system
- Sealed seams in Dressing Area,
roof,
fenders & uprights
|
Optional Features:
(All prices listed
are 24' model)
| Urethane
Paint finish (WHITE only) |
|
$600 |
| Roll-out
A&E Awning |
|
$800 |
| Chrome
Wheels (included) |
|
|
| Air
Conditioner with Heat Strip |
|
$850 |
| Rear
Loading ramp |
|
$950 |
| Available
Graphics colors |
|
included |
| Available
exterior colors |
|
included |
| Rubber
Wall liner (Plywood is std) |
|
$950 |
| Aluminum
roof mount hay rack |
|
$950 |
| |
|
|
Would you like more information?
Images:
(Click small thumbnail picture for larger photo)
|
|
|
|

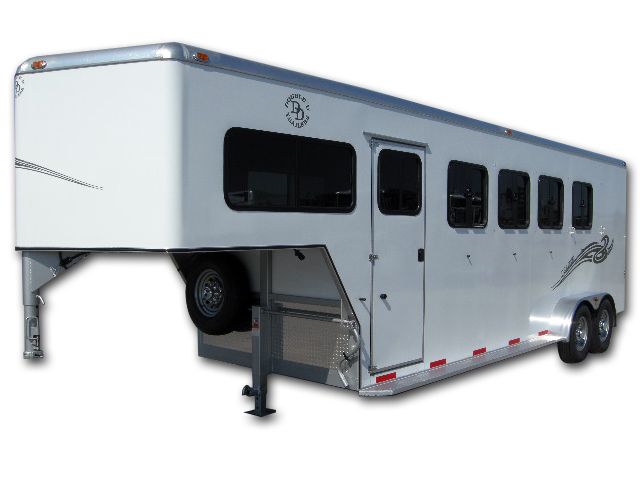

24' 4H Slant Deluxe trailer with 6' short wall
|
|
|
|
Shown with Optional Chrome Wheels
|
|
|
|
Notice the Fancy Wide Graphics Package
|
|
|
|

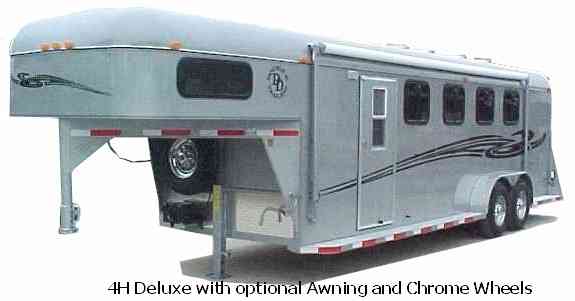

Shown with Optional Awning and Chrome Wheels
|
|
|
|
|
|
Rubber Bumper Is Standard
|
|
|
|
Large Sliding Windows with screens on horse butt side
|
|
|
|

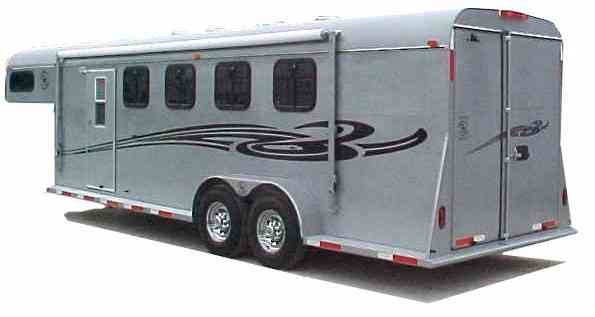

Double Rear Doors
|
|
|
|
|
|
|
Exclusive **Tack-Around Design
|
|
|
|
Positive Latch Door Hold Back
|
|
|
|
Notice the entire back of the trailer is open for those hard to load horses.
|
|
|
|

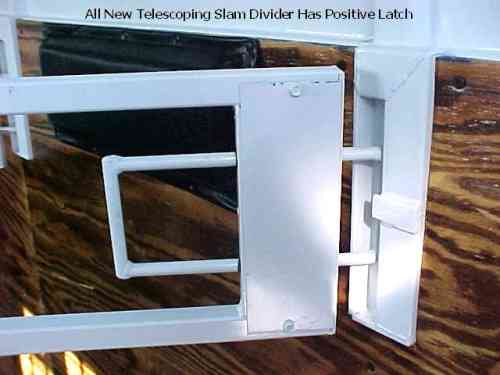

New Slam Divider Latches work great
|
|
|
|
|
|
Dressing room is unfinished
|
|
|
|

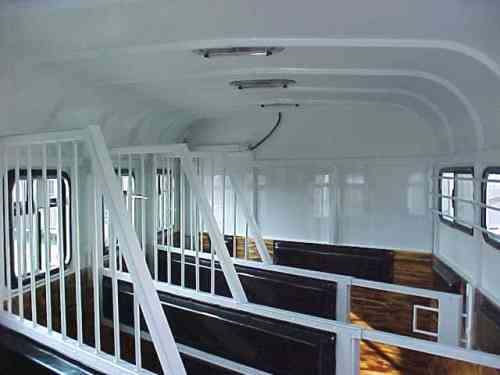

Lined and Padded Stalls with Mats
|
|
|
|
Roof Mount Hay Rack
|
|
|
